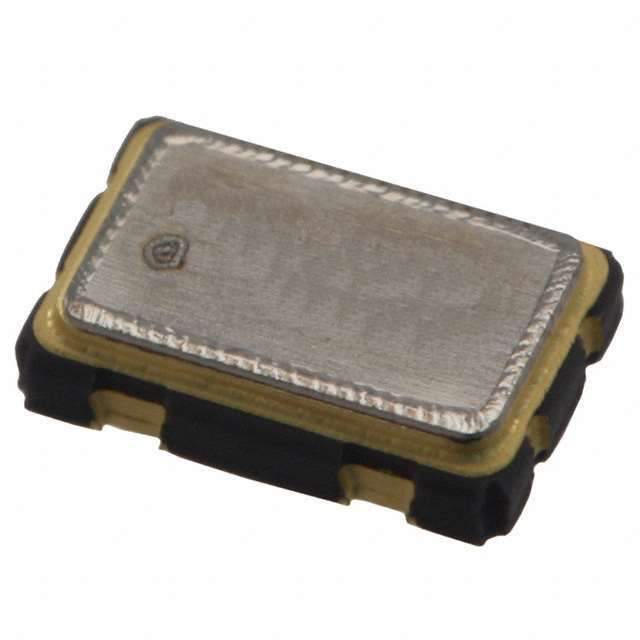

ECS-3525-1000-B-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-3525-1000-B-TR

Part No ECS-3525-1000-B-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 100.0000MHZ HCMOS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer ECS Inc.
Packaging Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 100MHz
Function Enable/Disable
Output HCMOS
Supply Voltage (V) 2.5V
Frequency Stability ±50ppm
Temperature Range - Operating 0°C ~ 70°C
Current - Supply (Maximum) 30mA
Mounting Style SMD
Manufacturer Package 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Maximum) 0.051" (1.30mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808840-ECS-3525-1000-B-TR
Ultra Librarian 3D Model Ultra Librarian ECS-3525-1000-B-TR CAD Model

Description

The ECS Inc. 747324 electronic component is a 100MHz XO (Standard) with a surface-mount device (SMD) mounting style.

  • Output: HCMOS
  • Frequency Stability: ±50ppm
  • Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Packaging: Reel
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Threat of Fake Products: 31%
