Same model may have multiple batches, images only for reference.

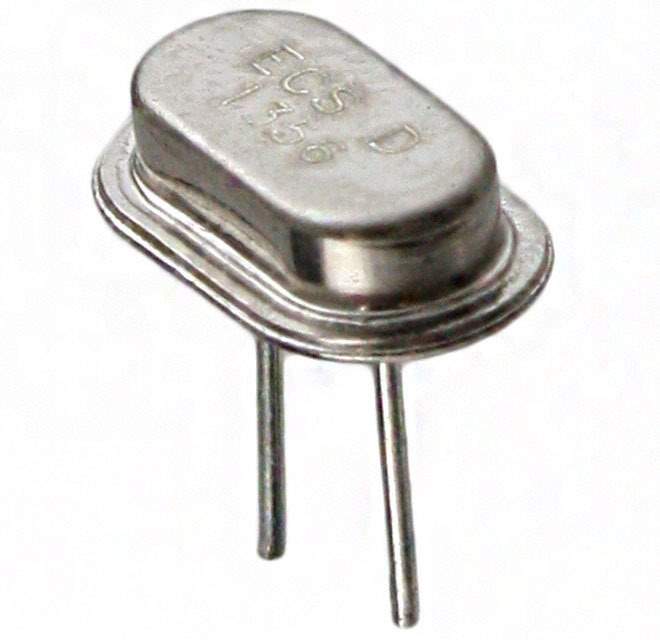

ECS-270-20-46X Real Image
Same model may have multiple batches, images only for reference.

ECS-270-20-46X

Part No ECS-270-20-46X
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 27.0000MHZ 20PF T/H / Crystal 27MHz ±30ppm (Tol) ±50ppm (Stability) 20pF FUND 50Ohm 2-Pin HC-49/USX Thru-Hole Bulk
Datasheet
ECS-270-20-46X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series HC-46X
Packaging Bulk
Type MHz Crystal
Frequency 27MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 50 Ohm
Operating Mode Fundamental
Operating Temperature Range -10°C ~ 70°C
Mounting Style Through Hole
Package HC46/X
Dimension 0.268" L x 0.157" W (6.80mm x 4.00mm)
Height - Seated (Maximum) 0.071" (1.80mm)
Win Source Part Number 799553-ECS-270-20-46X
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin Republic of Korea, Taiwan
Ultra Librarian 3D Model Ultra Librarian ECS-270-20-46X CAD Model

Description

The ECS Inc. 799553-ECS-270-20-46X is a MHz crystal that operates in the fundamental mode.

  • Frequency: 27MHz
  • ESR: 50 Ohm
  • Frequency Tolerance: ±30ppm
  • Frequency Stability: ±50ppm
  • Load Capacitance: 20pF
  • Temperature Range: -10°C to 70°C
  • Dimension: 0.268" L x 0.157" W (6.80mm x 4.00mm)
  • Seated Height: 0.071" (1.80mm)
  • Country of Origin: Republic of Korea, Taiwan
  • Packaging: Bulk
