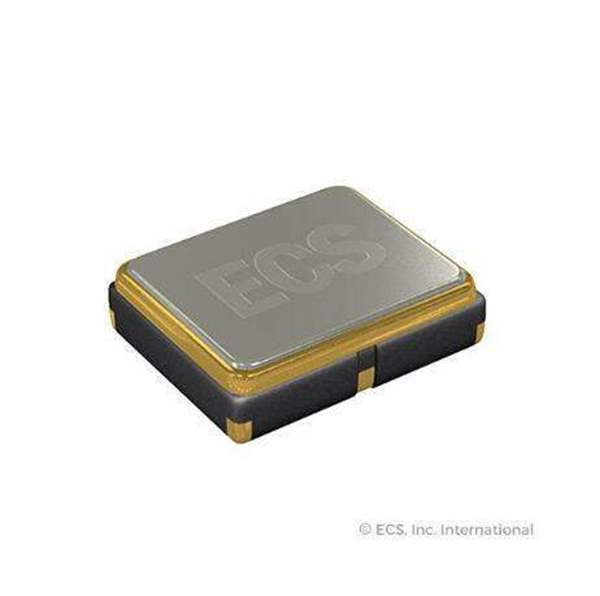

ECS-2520SMV-500-GP-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-2520SMV-500-GP-TR

Part No ECS-2520SMV-500-GP-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 50MHZ HCMOS SMD
Datasheet
ECS-2520SMV-500-GP-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer ECS Inc.
Category Crystals, Oscillators, Resonators Oscillators
Part Status Active
Frequency 50 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 1.62V ~ 3.63V
Operating Temperature -40°C ~ 105°C
Current - Supply (Max) 10mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Win Source Part Number WS1304782-ECS-2520SMV-500-GP-TR
Ultra Librarian 3D Model Ultra Librarian ECS-2520SMV-500-GP-TR CAD Model

Description

The ECS-2520SMV is a miniature SMD HCMOS Oscillator with Multi Volt™ capability of 1.62 ~ 3.63 V with a tight stability of ±5 or ±10 ppm. The 2.5 x 2.0 x 1.0 mm ceramic package is ideal for Low Power/Portable, Industrial and IOT. applications.
