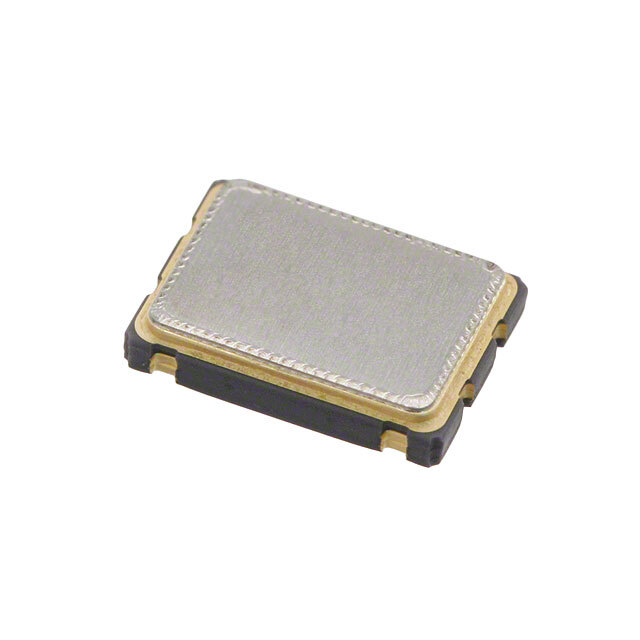

Same model may have multiple batches, images only for reference.
ECS-2333-100-BN-TR ECS Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ECS-2333-100-BN-TR

Part No ECS-2333-100-BN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description XTAL OSC XO 10.0000MHZ HCMOS SMD
Datasheet
ECS-2333-100-BN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Base Resonator Crystal
Type XO (Standard)
Frequency 10 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting Type Surface Mount
Case / Package 4-SMD, No Lead
Supplier Device Package 4-SMD (3.2x2.5)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.039\
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1529731-ECS-2333-100-BN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-2333-100-BN-TR CAD Model
