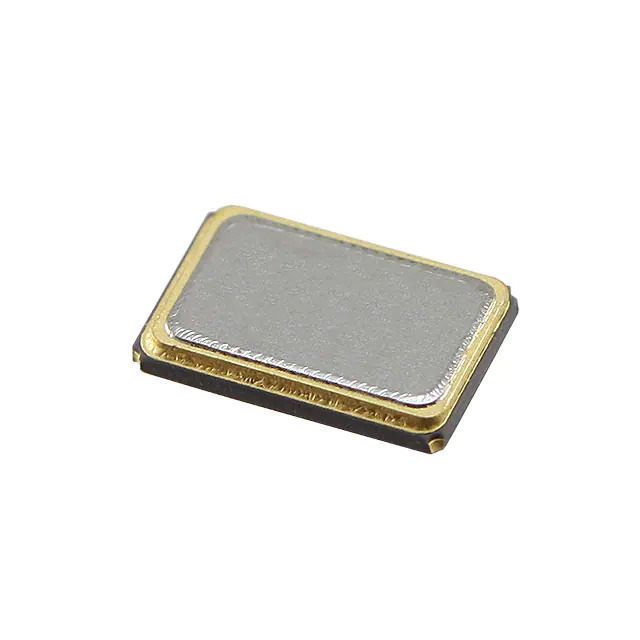

ECS-200-18-30B-AGN-TR ECS Inc.
Same model may have multiple batches, images only for reference.

ECS-200-18-30B-AGN-TR

Part No ECS-200-18-30B-AGN-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 20.0000MHZ 18PF SMD
Datasheet
ECS-200-18-30B-AGN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series ECX-53B
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±25ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.033" (0.85mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1366417-ECS-200-18-30B-AGN-TR
Ultra Librarian 3D Model Ultra Librarian ECS-200-18-30B-AGN-TR CAD Model

Description

The ECX-53B series from ECS Inc. is a 20 MHz crystal with a frequency stability of ±30ppm and a frequency tolerance of ±25ppm.

  • Frequency: 20 MHz
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±25ppm
  • Mounting Type: Surface Mount
  • Package: 4-SMD, No Lead
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Seated Height: 0.033" (0.85mm)
  • ESR (Equivalent Series Resistance): 40 Ohms
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Temperature Range: -40°C to 85°C
  • REACH Status: Unaffected
  • Status: Active
