Same model may have multiple batches, images only for reference.

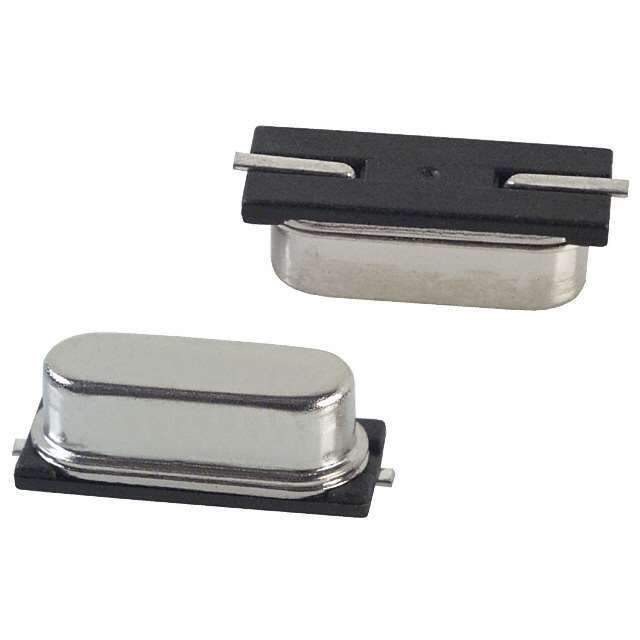

ECS-160-S-5PX-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-160-S-5PX-TR

Part No ECS-160-S-5PX-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 16.0000MHZ SERIES SMD / Crystal 16MHz ±30ppm (Tol) ±50ppm (Stability) Series FUND 40Ohm 2-Pin HC-49/USX SMD T/R
Datasheet
ECS-160-S-5PX-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series CSM-7X
Type MHz Crystal
Frequency 16MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance Series
ESR (Equivalent Series Resistance) 40 Ohm
Operating Mode Fundamental
Operating Temperature Range -10°C ~ 70°C
Mounting SMD
Package HC49/US
Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Maximum) 0.169" (4.30mm)
Win Source Part Number 770837-ECS-160-S-5PX-TR
Popularity Medium
Supply and Demand Status Limited
Introduction Date January 19, 1999
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ECS-160-S-5PX-TR CAD Model

Description

The 770837-ECS-160-S-5PX-TR MHz crystal is a high-quality crystal oscillator.

  • Frequency: 16MHz
  • Series: CSM-7X
  • Load Capacitance: Series
  • ESR: 40 Ohms
  • Mode: Fundamental
  • Mounting: Surface mount
  • Package: HC49/US
  • Temperature Range: -10°C to 70°C
  • Halogen-Free: Yes
