Same model may have multiple batches, images only for reference.

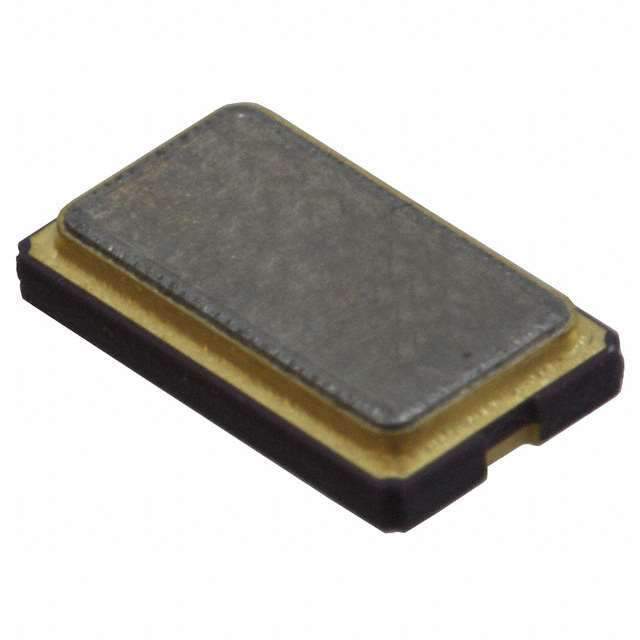

ECS-147.4-18-23A-EN-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-147.4-18-23A-EN-TR

Part No ECS-147.4-18-23A-EN-TR
Manufacturer ECS Inc.
Catalog Crystals
Description CRYSTAL 14.7456MHZ 18PF SMD / Crystal 14.7456MHz ±30ppm (Tol) ±50ppm (Stability) 18pF FUND 80Ohm 2-Pin Mini-SMD T/R
Datasheet
ECS-147.4-18-23A-EN-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer ECS Inc.
Series ECX-64A
Type MHz Crystal
Frequency 14.7456MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohm
Operating Mode Fundamental
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 2-SMD, No Lead
Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Maximum) 0.043" (1.10mm)
Win Source Part Number 770848-ECS-147.4-18-23A-EN-TR
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Country of Origin Republic of Korea
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian ECS-147.4-18-23A-EN-TR CAD Model

Description

The 770848-ECS-147.4-18-23A-EN-TR is a MHz crystal from ECS Inc.

  • Frequency: 14.7456MHz
  • ESR: 80 Ohm
  • Frequency Stability: ±50ppm
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Supply and Demand Status: Limited
