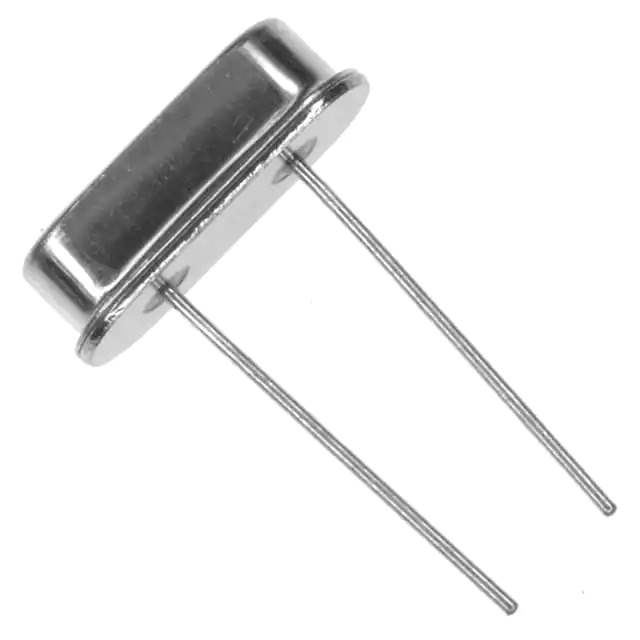

ECS-120-32-4X Real Image
Same model may have multiple batches, images only for reference.

ECS-120-32-4X

Part No ECS-120-32-4X
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 12.0000MHZ 32PF TH
Datasheet
ECS-120-32-4X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series HC-49USX
Package Bulk
Product Status Active
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 32pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Size / Dimension 0.447" L x 0.183" W (11.35mm x 4.65mm)
Height - Seated (Max) 0.138" (3.50mm)
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 917792-ECS-120-32-4X
Ultra Librarian 3D Model Ultra Librarian ECS-120-32-4X CAD Model

Description

The 917792-ECS-120-32-4X is a MHz crystal oscillator manufactured by ECS Inc. It belongs to the HC-49USX series and is a type of crystal oscillator.

  • Packaging: Bulk
  • Size: 0.447" L x 0.183" W (11.35mm x 4.65mm)
  • Seated Height: 0.138" (3.50mm)
  • Standard Package: 200 pieces
  • Frequency: 12 MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 32pF
  • Mode: Fundamental
  • Mounting: Through-hole mountable
  • Temperature Range: -10°C to 70°C
