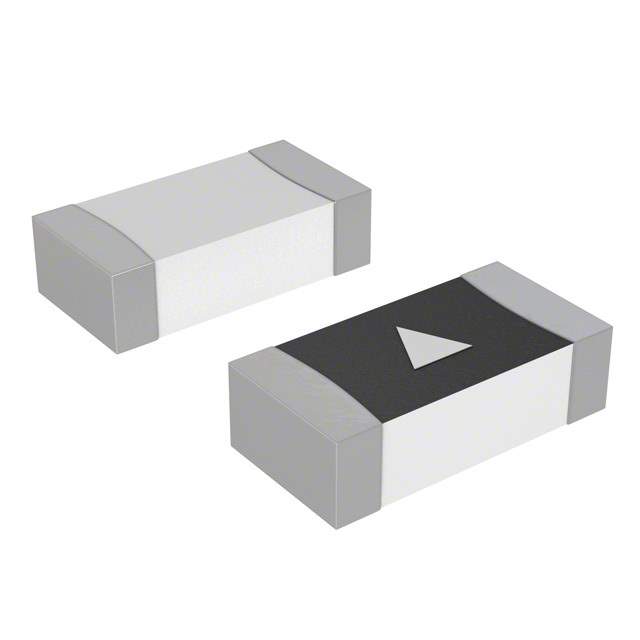

TR/3216LV250-R Real Image
Same model may have multiple batches, images only for reference.

TR/3216LV250-R

Part No TR/3216LV250-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 250MA 125VAC/VDC / 250 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series CHIP 3216LV
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 250 mA
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.00016
Approval Agency CSA, UL
Temperature Range - Operating -65°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.035" H (3.20mm x 1.60mm x 0.90mm)
DC Cold Resistance 4.5 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names 283-5284-6,TR-3216LV250-R,TR/3216LV250-R-ND,283-5284-1,283-5284-2
Standard Package 3,000
Win Source Part Number 1101182-TR/3216LV250-R
Ultra Librarian 3D Model Ultra Librarian TR/3216LV250-R CAD Model

Description

The CHIP 3216LV series board mount fuses are a type of fast-blow circuit protection device that is designed to interrupt the electrical circuit when current overload occurs.

  • Voltage Rating: 125V AC and DC
  • Breaking Capacity: 50A @ rated voltage
  • DC Cold Resistance: 4.5 Ohms
  • Mounting Type: SMD (SMT)
  • Package or Case: 1206 (3216 Metric)
  • Temperature Range: -65°C ~ 125°C
  • Alternative Part Number: 0448.315MR, 0453.315MR, 39603150000, 3404.0110.11, 3404.0006.11, 3404.0006.22TR-3216LV250-R, TR/3216LV250R, TR3216LV250-R
  • Approvals: CSA and UL
