Same model may have multiple batches, images only for reference.

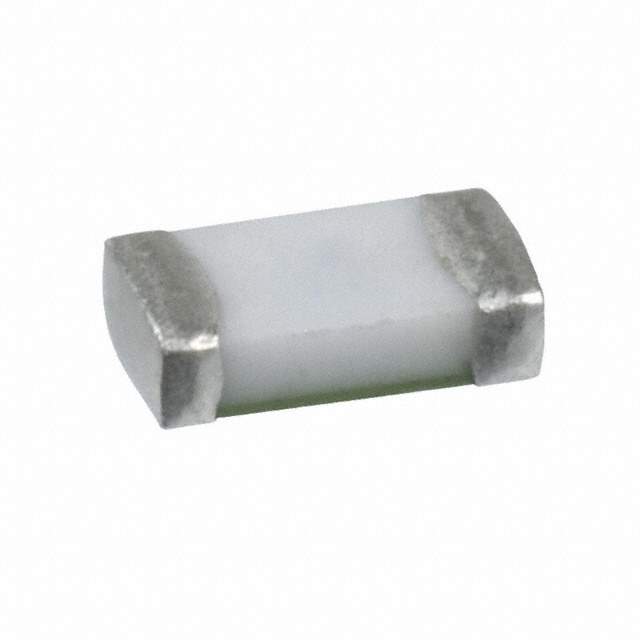

TR/3216FF4.5-R Real Image
Same model may have multiple batches, images only for reference.

TR/3216FF4.5-R

Part No TR/3216FF4.5-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 4.5A 32VAC/VDC 1206
Datasheet
TR/3216FF4.5-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 4.5A
Voltage Rating - AC 32V
Voltage Rating - DC 32V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.405
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.016 Ohm
Win Source Part Number 1113936-TR/3216FF4.5-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TR/3216FF4.5-R CAD Model

Description

The Eaton 1113936-TR/3216FF4.5-R is a board mountable cartridge style fuse.

  • Manufacturer: Eaton
  • Product Name: 1113936-TR/3216FF4.5-R
  • Type: Cartridge Fuse
  • Voltage Rating: 32V AC and DC
  • Current Rating: 4.5A
  • Response Time: Fast
  • Breaking Capacity @ Rated Voltage: 50A
  • Approvals: CSA and UL
  • Nominal Cold Resistance: 0.016 Ohm
  • Nominal Melting I2t: 0.405
  • Mounting Type: SMD (SMT)
  • Application: Circuit protection
  • Temperature Range: -55°C to 125°C
  • Size: 1.6mm x 3.2mm
  • Packaging: Reel
