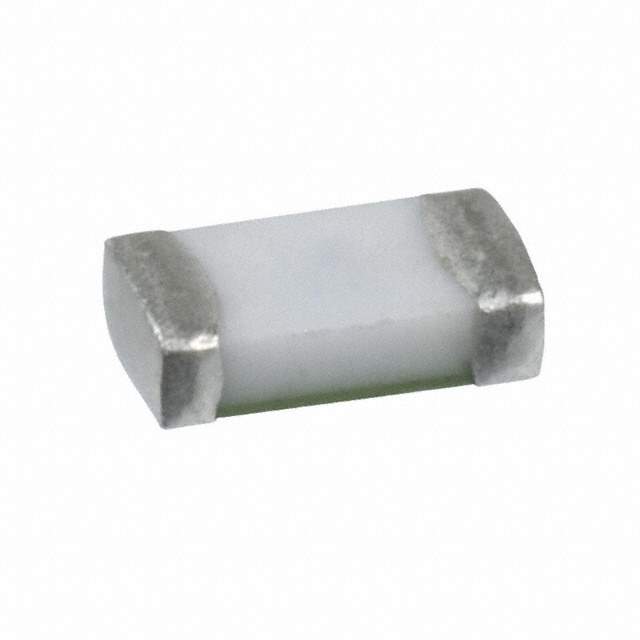

TR/3216FF2.5-R Real Image
Same model may have multiple batches, images only for reference.

TR/3216FF2.5-R

Part No TR/3216FF2.5-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 2.5A 32VAC 63VDC
Datasheet
TR/3216FF2.5-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 2.5A
Voltage Rating - AC 32V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.26
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.046 Ohm
Win Source Part Number 048285-TR/3216FF2.5-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TR/3216FF2.5-R CAD Model

Description

The Eaton Bussmann 048285-TR/3216FF2. The supply and demand status of this component is balanced.

  • Win Source Part Number: manufacturer part
  • Circuit Protection Device: yes
  • Current Rating: 2.5A
  • Voltage Rating: 32V AC and 63V DC
  • Response Time: fast
  • Breaking Capacity: 50A @ rated voltage
  • Approvals: CSA and UL
  • Mounting: SMD (SMT) technology
  • Temperature Range: -55°C to 125°C
  • Nominal Melting I2t: 0.26
  • Nominal Cold Resistance: 0.046 Ohm
