Same model may have multiple batches, images only for reference.

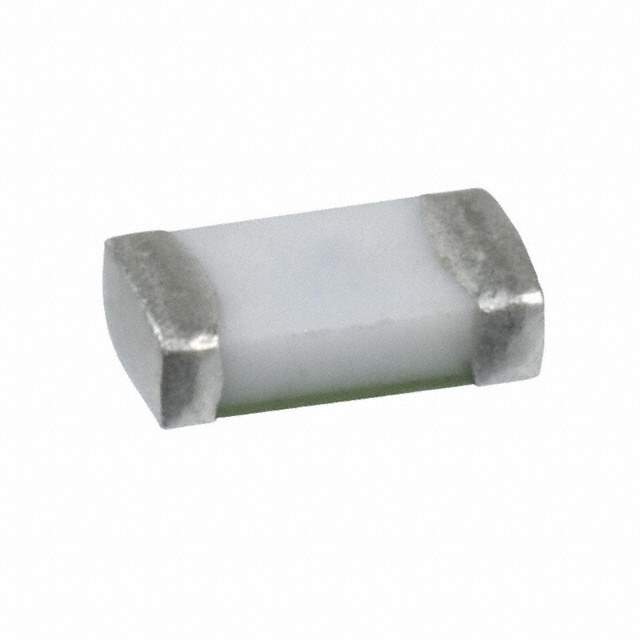

TR/3216FF-5A Real Image
Same model may have multiple batches, images only for reference.

TR/3216FF-5A

Part No TR/3216FF-5A
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 5A 32VAC/VDC 1206
Datasheet
TR/3216FF-5A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Obsolete(EOL)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 5A
Voltage Rating - AC 32V
Voltage Rating - DC 32V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.663
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.014 Ohm
Win Source Part Number 048294-TR/3216FF-5A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TR/3216FF-5A CAD Model

Description

The Eaton Bussmann 048294-TR/3216FF-5A is a fast-acting 5A circuit protection fuse with a breaking capacity of 50A @ rated voltage.

  • Voltage Rating: 32V AC/DC
  • Mounting: surface
  • Package: reel-TR
  • Approvals: CSA and UL
  • Applications: automotive, power supplies, and telecommunications
