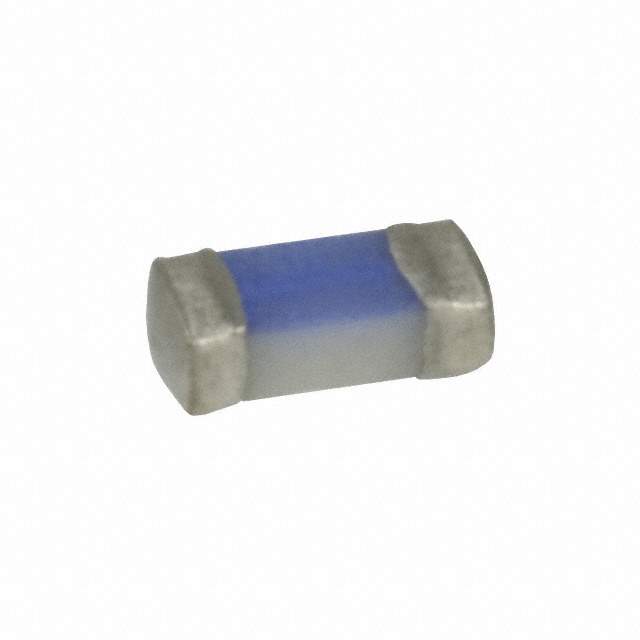

TR/0603FA2.5-R Real Image
Same model may have multiple batches, images only for reference.

TR/0603FA2.5-R

Part No TR/0603FA2.5-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 2.5A 32VAC/VDC 0603
Datasheet
TR/0603FA2.5-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 2.5A
Voltage Rating - AC 32V
Voltage Rating - DC 32V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 35A
Nominal Melting - I2t 0.0625
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.037 Ohm
Win Source Part Number 109809-TR/0603FA2.5-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TR/0603FA2.5-R CAD Model

Description

The 109809-TR/0603FA2.5-R fuse from Eaton Bussmann is designed to provide high performance for various electronic applications.

  • Current Rating: 2.5A
  • Voltage Rating: 32V AC and DC
  • Response Time: Fast
  • Breaking Capacity: 35A @ rated voltage
  • Mounting: SMD (SMT)
  • Status: Active
  • Category: Circuit Protection
  • Approvals: CSA and UL
  • Temperature Range: -55°C to 125°C
  • Nominal Melting - I2t: 0.0625
  • Nominal Cold Resistance: 0.037 Ohm
  • Supply and Demand: Balanced
