Same model may have multiple batches, images only for reference.

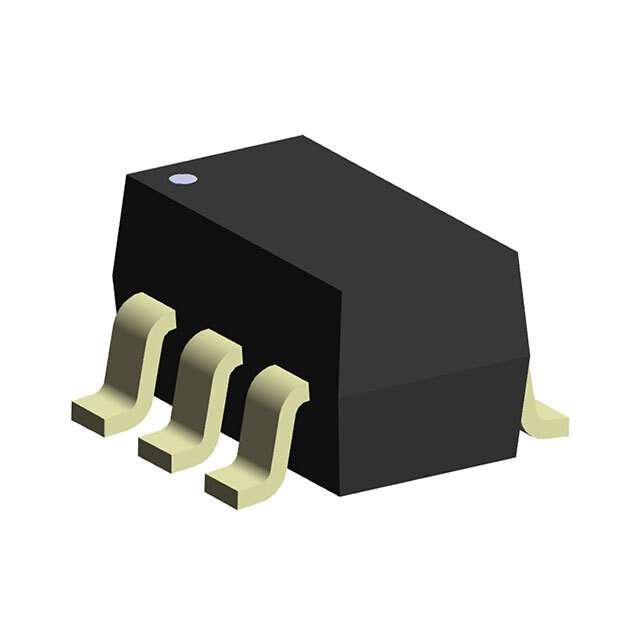

STS234050U150 Real Image
Same model may have multiple batches, images only for reference.

STS234050U150

Part No STS234050U150
Manufacturer Eaton Bussmann
Catalog TVS - Diodes
Description TVS DIODE 5VWM 18VC SOT23-6 / 18V Clamp 24A (8/20µs) Ipp Tvs Diode Surface Mount SOT23-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Eaton - Electronics Division
Series BUSSMANN
Package Tape & Reel
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 18V
Current - Peak Pulse (10/1000µs) 24A (8/20µs)
Power - Peak Pulse 500W
Power Line Protection Yes
Applications DVI, Ethernet, USB
Capacitance @ Frequency 3pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting SMD (SMT)
Package / Case SOT-23-6
Supplier Device Package SOT23-6
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 283-STS234050U150CT,283-STS234050U150DKR,283-STS234050U150TR
Standard Package 3,000
Win Source Part Number 1097273-STS234050U150
Ultra Librarian 3D Model Ultra Librarian STS234050U150 CAD Model

Description

The STS234050U150 is a steering type TVS diode from the Bussmann series.

  • Applications: DVI, Ethernet, and USB
  • Package: tape and reel
  • Channels: four unidirectional
  • Reverse Standoff Voltage: 5V (Max)
  • Breakdown Voltage: 6V
  • Clamping Voltage: 18V @ peak pulse power of 500W
  • Capacitance: 3pF @ 1MHz
  • Peak Pulse Current: 24A (8/20µs)
  • Temperature Range: -55°C ~ 125°C (TJ)
  • MSL Rating: level 3
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
