Same model may have multiple batches, images only for reference.

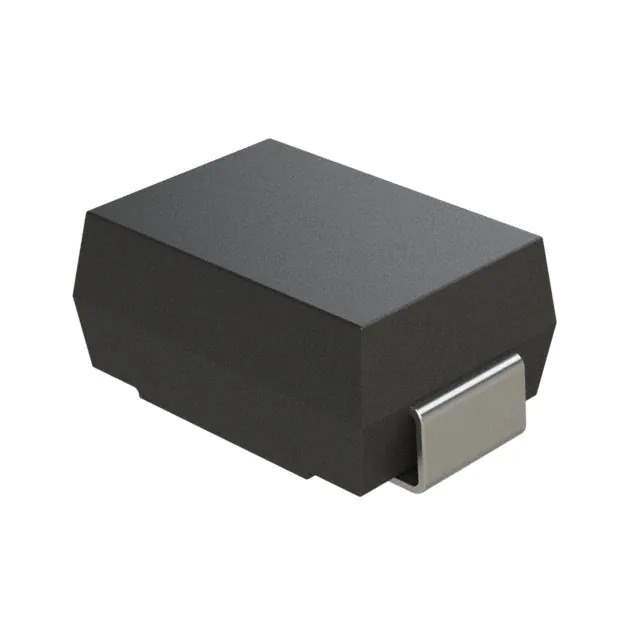

SMCP4200SC Real Image
Same model may have multiple batches, images only for reference.

SMCP4200SC

Part No SMCP4200SC
Manufacturer Eaton Bussmann
Catalog TVS - Thyristors
Description THYRISTOR 400V 400A DO214AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Thyristors
Mfr Eaton Bussmann
Series SMCP
Package Tape & Reel
Product Status Active
Voltage - Breakover 520V
Voltage - Off State 400V
Voltage - On State 4 V
Current - Peak Pulse (8/20µs) 400 A
Current - Peak Pulse (10/1000µs) 100 A
Current - Hold (Ih) 120 mA
Number of Elements 1
Capacitance 35pF
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package SMB
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 867083-SMCP4200SC
Ultra Librarian 3D Model Ultra Librarian SMCP4200SC CAD Model

Description

The 867083-SMCP4200SC is a transient voltage suppressor (TVS) thyristor from Eaton Bussmann's SMCP series.

  • Package: Tape and Reel
  • Standard Package: 3,000 pcs
  • Capacitance: 35pF
  • Peak Pulse Current (10/1000µs): 100A
  • Off State Voltage: 400V
  • Breakover Voltage: 520V
  • On-State Voltage: 4V
  • Hold Current: 120 mA
  • Peak Pulse Current (8/20µs): 400A
  • Mounting Type: Surface Mountable
  • Package: DO-214AA, SMB
  • Status: Active
