Same model may have multiple batches, images only for reference.

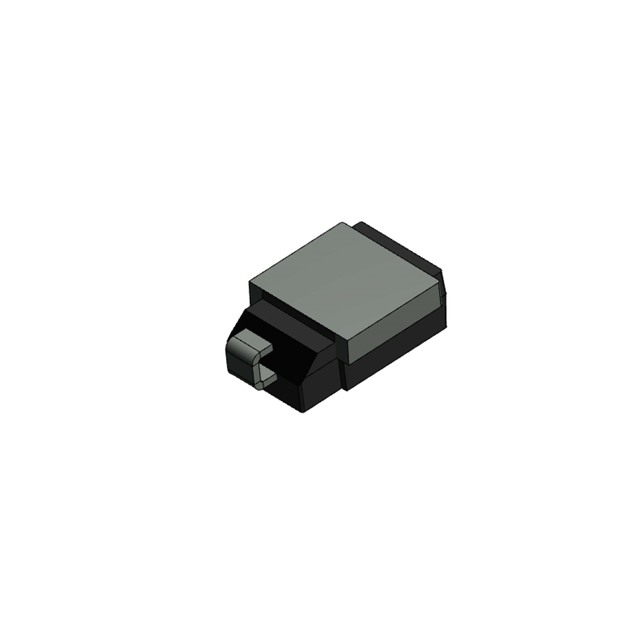

SM8S11AH Real Image
Same model may have multiple batches, images only for reference.

SM8S11AH

Part No SM8S11AH
Manufacturer Eaton Bussmann
Catalog TVS - Diodes
Description TVS DIODE 11VWM UNI / 18.2V Clamp 336A Ipp Tvs Diode Surface Mount DO-218AB
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Eaton - Electronics Division
Series Automotive, AEC-Q101, SM8SxxH
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 11V
Voltage - Breakdown (Min) 12.2V
Voltage - Clamping (Max) @ Ipp 18.2V
Current - Peak Pulse (10/1000µs) 336A
Power - Peak Pulse 6600W (6.6kW)
Power Line Protection No
Applications Automotive, Telecom
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case DO-218AB
Supplier Device Package DO-218AB
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 283-SM8S11AHTR
Standard Package 750
Win Source Part Number 1147638-SM8S11AH
Ultra Librarian 3D Model Ultra Librarian SM8S11AH CAD Model

Description

The SM8S11AH from Eaton Bussmann is a TVS diode used for circuit protection in automotive and telecom applications manufactured by Eaton Bussmann.

  • Type: Zener
  • Voltage Rating: 11V reverse standoff (typ) and 12.2V breakdown (min)
  • Voltage Clamping (max) @ Ipp: 18.2V
  • Power Peak Pulse: 6600W (6.6kW)
  • Current Rating: 336A peak pulse (10/1000µs)
  • Channel: Unidirectional 1
  • Package: Tape & Reel (TR)
  • Mounting Type: SMD (SMT)
  • Package/Case: DO-218AB
  • Supplier Device Package: DO-218AB
  • Approvals: Automotive and Telecom
