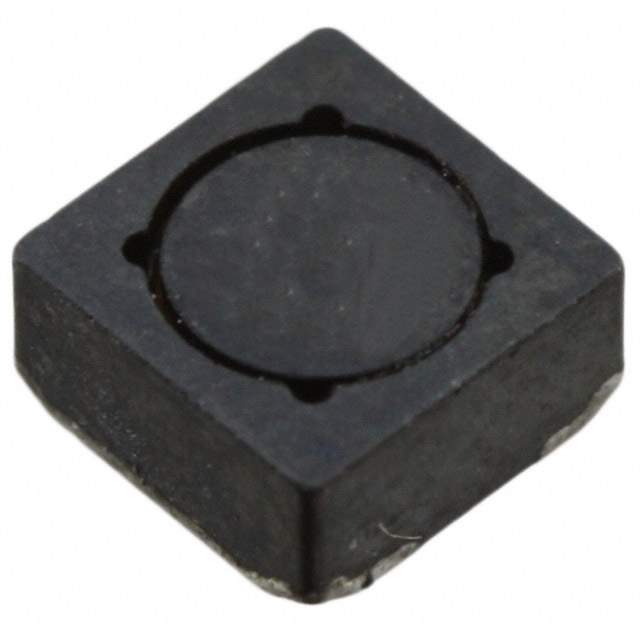

SD25-6R8-R Real Image
Same model may have multiple batches, images only for reference.

SD25-6R8-R

Part No SD25-6R8-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 6.8UH 2.19A 55.6 MOHM / 6.8 µH Shielded Drum Core, Wirewound Inductor 2.19 A 55.6mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series SD
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 2.19 A
Current - Saturation (Isat) 1.56A
Shielding Shielded
DC Resistance (DCR) 55.6mOhm
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max) 0.098" (2.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names SD25-6R8-R-ND,513-1801-2,SD25-6R8,513-1801-1,SD256R8R,513-1801-6,SD25-6R8-ND
Standard Package 2,900
Win Source Part Number 994177-SD25-6R8-R
Ultra Librarian 3D Model Ultra Librarian SD25-6R8-R CAD Model

Description

The SD25-6R8-R is a fixed inductor from Eaton - Electronics Division.

  • Core Type: Drum core
  • Inductor Type: Wirewound
  • Shielded: Yes
  • Inductance: 6.8μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 55.6mOhm
  • Operating Temperature: -40°C to 85°C
  • Height Seated (Max): 0.098" (2.50mm)
  • Dimension (LxW): 0.205" L x 0.205" W (5.20mm x 5.20mm)
  • Current Rating (Amps): 2.19A
  • Package/Case: Non-standard
