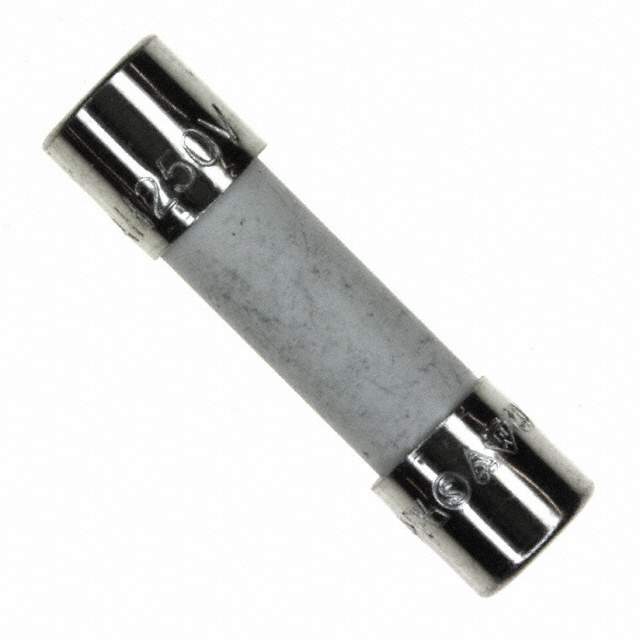

S505-3.15-R Real Image
Same model may have multiple batches, images only for reference.

S505-3.15-R

Part No S505-3.15-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE CERAMIC 3.15A 250VAC 5X20MM / 3.15 A 250 V AC DC Fuse Cartridge, Ceramic Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series S505
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 3.15 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 36.6
Approval Agency BSI, CCC/CQC, CSA, cULus, IMQ, KC, PSE/JET, SEMKO, VDE
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0305 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names S505-3-15-R
Standard Package 5
Win Source Part Number 1218977-S505-3.15-R
Ultra Librarian 3D Model Ultra Librarian S505-3.15-R CAD Model

Description

The S505 series from Eaton is a slow blow cartridge ceramic fuse with a voltage rating of 250V AC and a breaking capacity of 1.5kA.

  • Fuse Size: 5mm x 20mm
  • DC Cold Resistance: 0.0305 Ohms
  • Package: Bulk
  • Quantity per package: Five fuses
  • Fuse Type: Cartridge, ceramic
  • Mounting: Holder
  • Melting I2t: 36.6
  • Operating Temperature Range: Not specified
  • Equivalent Product: S505-3-15-R
  • Application: Ideal for use in circuit protection applications.
