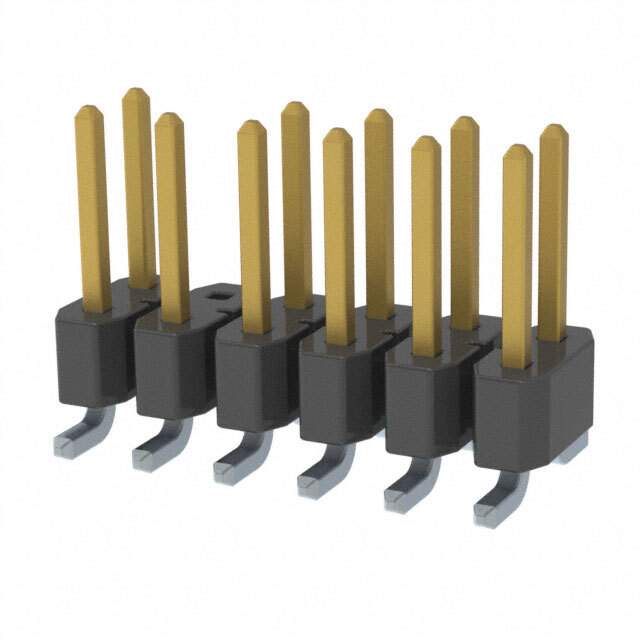

TSM-106-01-L-DV-010-P

Name: TSM-106-01-L-DV-010-P
Brand: Samtec Inc.
SKU: 1001321
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM-106-01-L-DV-010-P
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 12POS 2.54MM / Connector Header Surface Mount 12 position 0.100" (2.54mm)
Datasheet	TSM-106-01-L-DV-010-P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	11
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-106
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1001321-TSM-106-01-L-DV-010-P
Ultra Librarian 3D Model	Ultra Librarian TSM-106-01-L-DV-010-P CAD Model

Alternative Products

Description

The TSM series headers from Samtec Inc. are high-quality rectangular connectors designed for board-to-board or cable applications.

Connector Type: Header
Contact Type: Male Pin
Number of Rows: 2
Insulation Material: Liquid Crystal Polymer (LCP)
Pitch-Mating: 0.100 inches
Contact Material: Phosphor Bronze
Contact Finish - Mating: Gold (10.0µin)
Contact Finish - Post: Tin
Standard Package: 1
Mounting Type: Surface Mount Device (SMD)
Row Spacing-Mating: 0.100 inches
Contact Length-Mating: 0.230 inches
Operating Temperature Range: -55°C to 125°C
