Same model may have multiple batches, images only for reference.

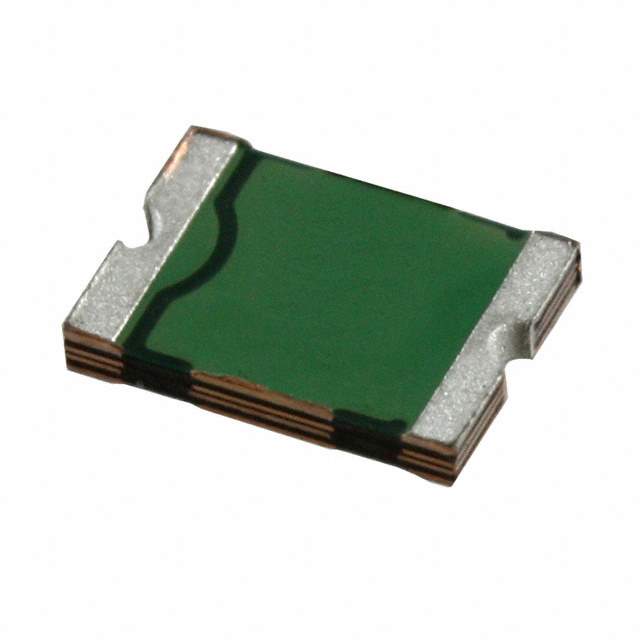

PTS181230V020 Real Image
Same model may have multiple batches, images only for reference.

PTS181230V020

Part No PTS181230V020
Manufacturer Eaton Bussmann
Catalog PTC Resettable Fuses
Description PTC RESETTABLE SMD 1812 30V 0.2A
Datasheet
PTS181230V020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 100A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 400mA
Time to Trip 20ms
Resistance - Initial (Ri) (Min) 800 mOhm
Resistance - Post Trip (R1) (Max) 5 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.035" (0.90mm)
Approvals cURus, TUV
Win Source Part Number 004486-PTS181230V020
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTS181230V020 CAD Model

Description

The 004486-PTS181230V020 polymeric fuse is an active product designed for circuit protection applications.

  • Maximum Voltage: 30V
  • Maximum Current: 100A
  • Current Hold (Ih): 200mA
  • Current Trip (It): 400mA
  • Time to Trip: 20ms
  • Initial Resistance (Ri): 800 mOhm
  • Post-Trip Resistance (R1): 5 Ohm
  • Mounting Type: SMD (SMT)
  • Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Temperature Range for Operating: -40°C to 85°C
  • Approvals: cURus and TUV
