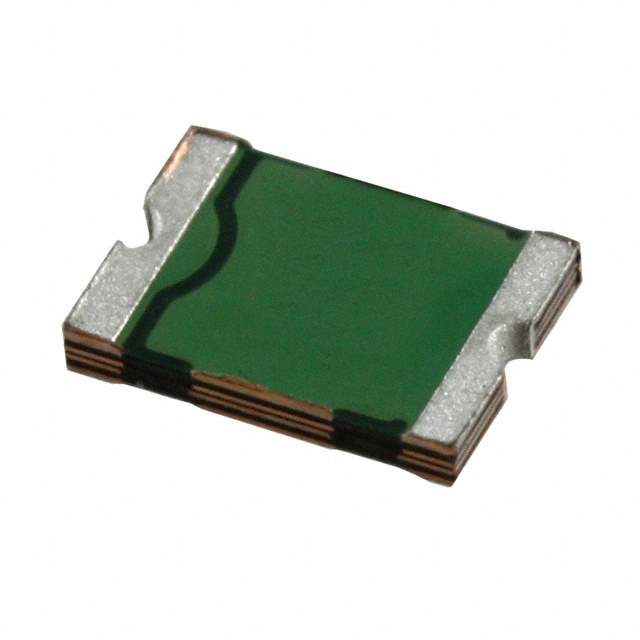

PTS181213V075 Real Image
Same model may have multiple batches, images only for reference.

PTS181213V075

Part No PTS181213V075
Manufacturer Eaton Bussmann
Catalog PTC Resettable Fuses
Description PTC RESETTABLE SMD 1812 13V .75A
Datasheet
PTS181213V075 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 13.2V
Current - Max 100A
Current - Hold (Ih) (Max) 750mA
Current - Trip (It) 1.5A
Time to Trip 200ms
Resistance - Initial (Ri) (Min) 110 mOhm
Resistance - Post Trip (R1) (Max) 450 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.027" (0.68mm)
Approvals cURus, TUV
Win Source Part Number 004485-PTS181213V075
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTS181213V075 CAD Model

Description

The Eaton Bussmann 004485-PTS181213V075 polymeric circuit protection component is a high-quality component designed to provide excellent performance and reliability.

  • Voltage Rating: 13.2V
  • Current Rating: 100A
  • Thickness: 0.027" (0.68mm)
  • Mounting: SMD (SMT) technology
  • Current Hold (Ih): 750mA
  • Current Trip (It): 1.5A
  • Time to Trip: 200ms
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Resistance - Initial (Ri) (Min): 110 mOhm
  • Resistance - Post Trip (R1) (Max): 450 mOhm
  • Status: Supply and demand status is balanced
