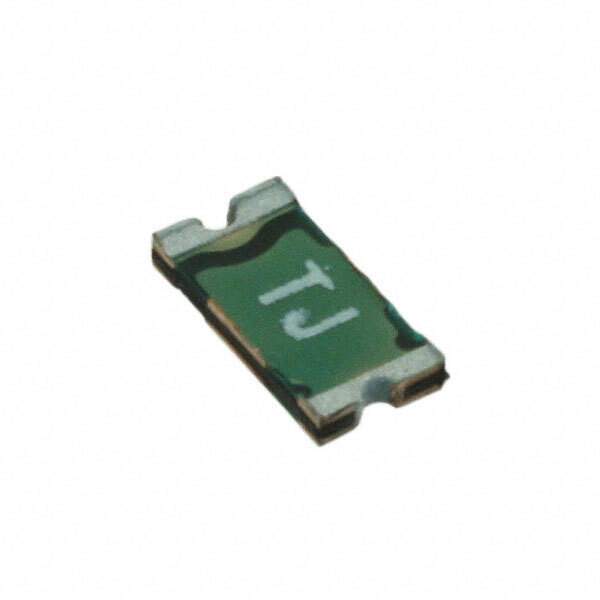

PTS12066V050 Real Image
Same model may have multiple batches, images only for reference.

PTS12066V050

Part No PTS12066V050
Manufacturer Eaton Bussmann
Catalog PTC Resettable Fuses
Description PTC RESETTABLE SMD 1206 6V 0.5A
Datasheet
PTS12066V050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 150 mOhm
Resistance - Post Trip (R1) (Max) 700 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.128" L x 0.065" W (3.25mm x 1.65mm)
Thickness (Max) 0.027" (0.68mm)
Approvals cURus, TUV
Win Source Part Number 004482-PTS12066V050
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PTS12066V050 CAD Model

Description

The Eaton Bussmann 004482-PTS12066V050 is a polymeric circuit protection device with a maximum voltage of 6V and a maximum current of 100A.

  • Maximum Voltage: 6V
  • Maximum Current: 100A
  • Thickness: 0.027' (0.68mm)
  • Mounting: SMD (SMT)
  • Current Hold: 500mA
  • Current Trip: 1A
  • Time to Trip: 100ms
  • Approvals: cURus and TUV
  • Temperature Range: -40°C to 85°C
  • Initial Resistance: 150 mOhm
  • Post-Trip Resistance: 700 mOhm
  • Application: commonly used in circuits for overcurrent protection
