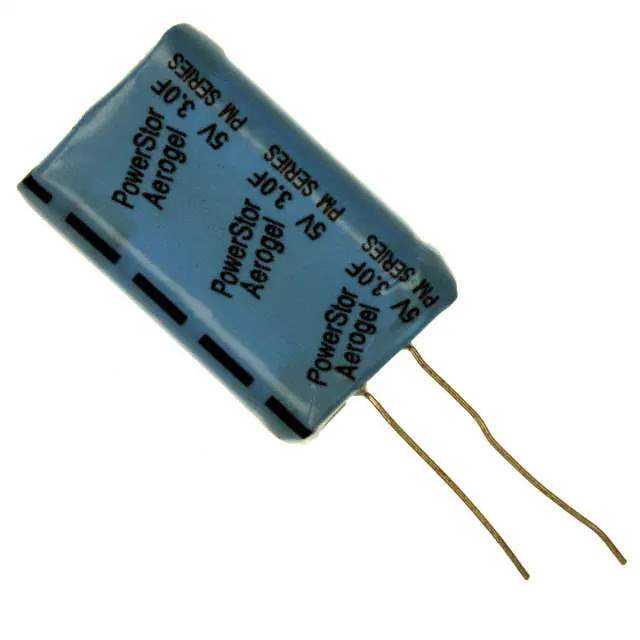

PM-5R0V305-R Real Image
Same model may have multiple batches, images only for reference.

PM-5R0V305-R

Part No PM-5R0V305-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 3F -20% +80% 5V T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Eaton Bussmann
Series PM
Package Bulk
Product Status Active
Capacitance 3 F
Tolerance -20%, +80%
Voltage - Rated 5 V
ESR (Equivalent Series Resistance) 70mOhm
Lifetime @ Temp. 1000 Hrs @ 60°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.209" (5.30mm)
Size / Dimension 0.839" L x 0.433" W (21.30mm x 11.00mm)
Height - Seated (Max) 1.280" (32.50mm)
Temperature Range - Operating -40°C ~ 60°C
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 656128-PM-5R0V305-R
Ultra Librarian 3D Model Ultra Librarian PM-5R0V305-R CAD Model

Description

The 656128-PM-5R0V305-R is an electric double layer capacitor from the PM series by Eaton Bussmann.

  • Capacitance: 3 F
  • Rated Voltage: 5V
  • Size: 0.839" L x 0.433" W (21.30mm x 11.00mm)
  • Seated Height: 1.280" (32.50mm)
  • Tolerance: -20%, +80%
  • Equivalent Series Resistance (ESR): 70mOhm
  • Lifetime: 1000 hours @ 60°C
  • Package: Bulk
  • Case: Radial, can
  • Operating Temperature: -40°C to 60°C
