Same model may have multiple batches, images only for reference.

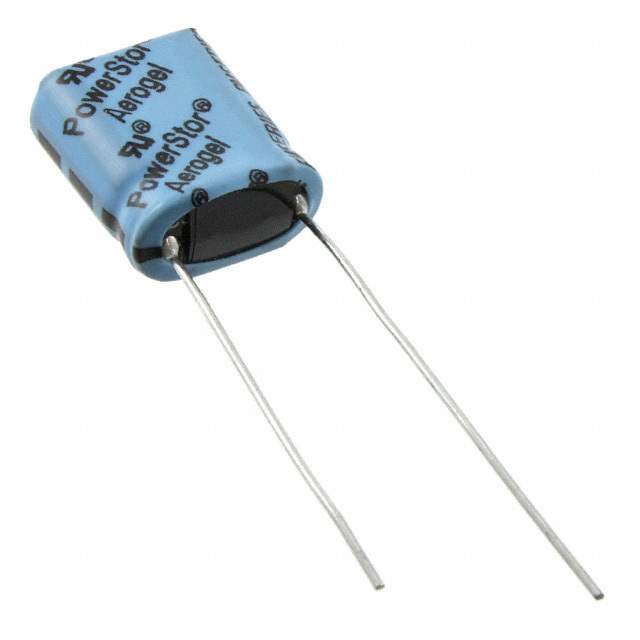

PM-5R0V104-R Real Image
Same model may have multiple batches, images only for reference.

PM-5R0V104-R

Part No PM-5R0V104-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 100MF -20% +80% 5V T/H / 100 mF (EDLC) Supercapacitor 5 V Radial, Can 1.25Ohm @ 1kHz 1000 Hrs @ 60°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Eaton - Electronics Division
Series PM
Package Bulk
Capacitance 100 mF
Tolerance -20%, +80%
Voltage - Rated 5 V
ESR (Equivalent Series Resistance) 1.25Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 60°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.287" (7.30mm)
Size / Dimension 0.445" L x 0.236" W (11.30mm x 6.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Temperature Range - Operating -40°C ~ 60°C
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1338896-PM-5R0V104-R
Ultra Librarian 3D Model Ultra Librarian PM-5R0V104-R CAD Model

Description

The PM-5R0V104-R is an electric double layer capacitor from Eaton, designed for use in electronic circuits.

  • Capacitance: 100 mF
  • Voltage Rating: 5 V
  • Tolerance: -20%, +80%
  • ESR (Equivalent Series Resistance): 1.25Ohm @ 1kHz
  • Lifetime: 1000 Hrs @ 60°C
  • Mounting Type: Through Hole
  • Lead Spacing: 0.287" (7.30mm)
  • Dimension: 0.445" L x 0.236" W (11.30mm x 6.00mm)
  • Operating Temperature: -40°C ~ 60°C
