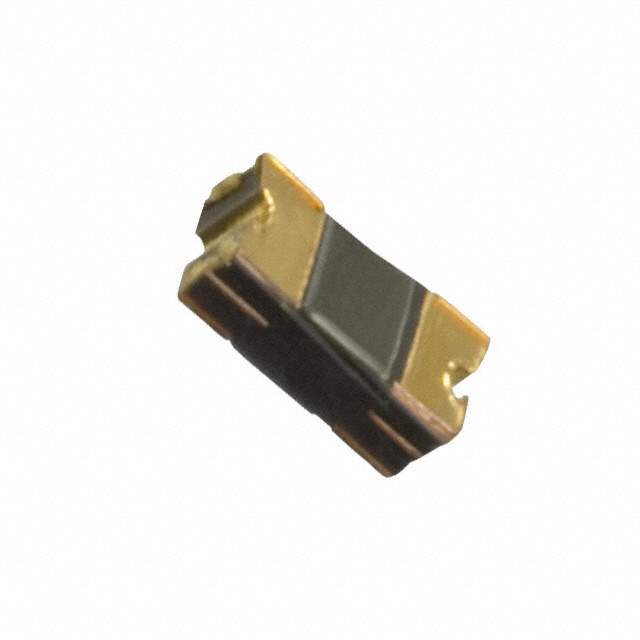

PC06F1A Real Image
Same model may have multiple batches, images only for reference.

PC06F1A

Part No PC06F1A
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 1A 32VAC/VDC 0603
Datasheet
PC06F1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Obsolete(EOL)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 1A
Voltage Rating - AC 32V
Voltage Rating - DC 32V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.00616
Approvals UL
Nominal Cold Resistance 0.065 Ohm
Win Source Part Number 112791-PC06F1A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC06F1A CAD Model

Description

The Eaton Bussmann 112791-PC06F1A is a fast-acting board mount fuse with a current rating of 1A and voltage rating of 32V AC/DC.

  • Current Rating: 1A
  • Voltage Rating: 32V AC/DC
  • Breaking Capacity: 50A @ rated voltage
  • Approvals: UL
  • Mounting Technology: SMD (SMT)
  • Nominal Cold Resistance: 0.065 Ohm
  • Category: Circuit Protection
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
