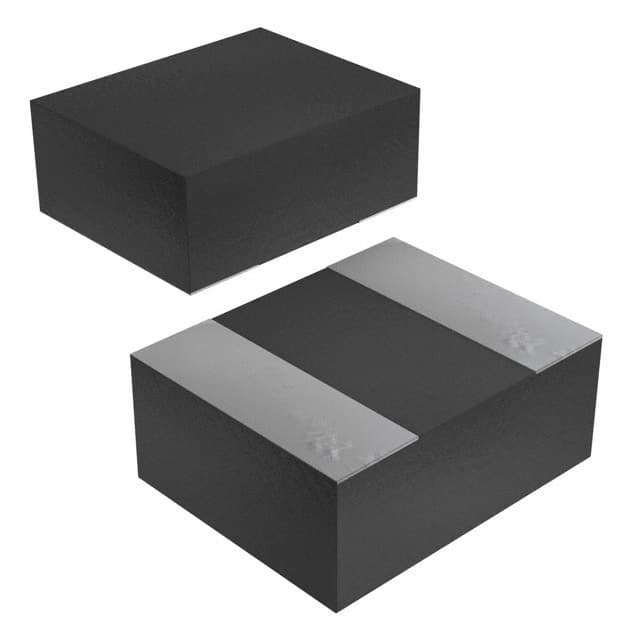

Same model may have multiple batches, images only for reference.
MPI2520R1-2R2-R
Same model may have multiple batches, images only for reference.

MPI2520R1-2R2-R

Part No MPI2520R1-2R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 2.2UH 2.3A 90 MOHM SMD / 2.2 μH Shielded Multilayer Inductor 2.3 A 90mOhm Max 1008 (2520 Metric)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series MPI2520
Package Tape & Reel
Product Status Obsolete
Type Multilayer
Material - Core Metal Composite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 2.3 A
Current - Saturation (Isat) 2.7A
Shielding Shielded
DC Resistance (DCR) 90mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 885785-MPI2520R1-2R2-R
Ultra Librarian 3D Model Ultra Librarian MPI2520R1-2R2-R CAD Model

Description

The MPI2520R1-2R2-R is a fixed inductor from the MPI2520 series.

  • Series: MPI2520
  • Type: Multilayer inductor
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Packaging: Tape and reel
  • Inductance: 2.2µH
  • Maximum Seated Height: 0.047" (1.20mm)
  • Tolerance: ±20%
  • DC Resistance: 90mOhm max
  • Mounting: Surface mount
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Eaton Bussmann
  • Market Status: Obsolete
