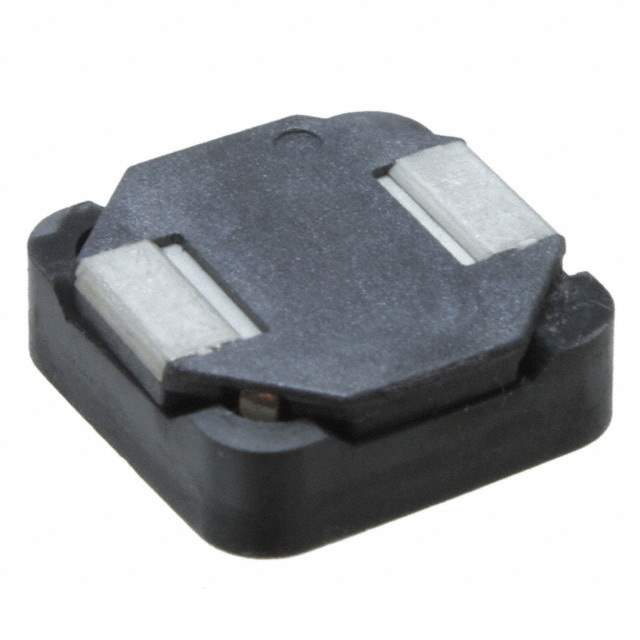

DRA124-1R5-R Real Image
Same model may have multiple batches, images only for reference.

DRA124-1R5-R

Part No DRA124-1R5-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 1.5UH 9.36A 4.9MOHM SM / 1.5 µH Shielded Wirewound Inductor 9.36 A 4.9mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series DRA
Package Tape & Reel
Type Wirewound
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 9.36 A
Current - Saturation (Isat) 17.11A
Shielding Shielded
DC Resistance (DCR) 4.9mOhm
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 165°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.177" (4.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 283-3553-6,DRA124-1R5-R-ND,283-3553-2,283-3553-1,DRA1241R5R
Standard Package 750
Win Source Part Number 996509-DRA124-1R5-R
Ultra Librarian 3D Model Ultra Librarian DRA124-1R5-R CAD Model

Description

The DRA series of shielded inductors from Eaton is a high-quality range of wirewound inductors.

  • Inductor: DRA124-1R5-R
  • Packaging: Tape and Reel
  • Inductance: 1.5 µH
  • Current Rating: 9.36 A
  • DC Resistance: 4.9mOhm
  • Tolerance: ±20%
  • Temperature Range: -40°C to 165°C
  • Standard: AEC-Q200
  • Type: Wirewound
  • Case: Nonstandard
