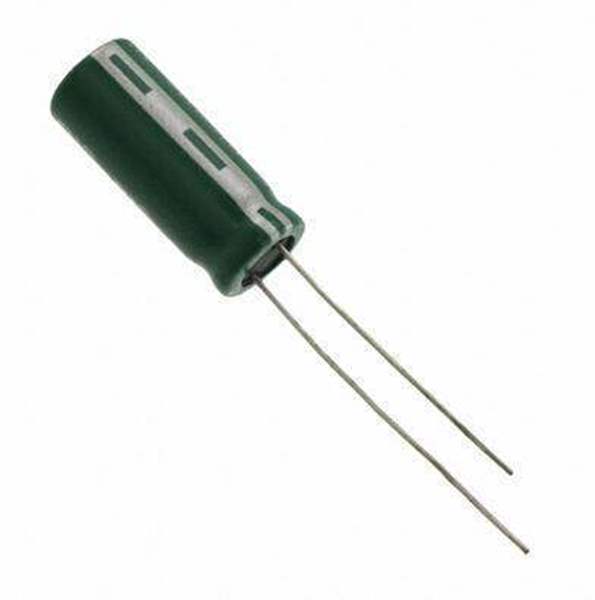

HV0820-2R7305-REaton - Electronics Division
Same model may have multiple batches, images only for reference.

HV0820-2R7305-R

Part No HV0820-2R7305-R
Manufacturer Eaton Bussmann
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 3F -10% +30% 2.7V T/H
Datasheet
HV0820-2R7305-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Category Capacitors Electric Double Layer Capacitors (EDLC), Supercapacitors
Packaging  Bulk
Part Status Active
Tolerance -10%, +30%
ESR (Equivalent Series Resistance) 80mOhm @ 100Hz
Lifetime @ Temp. 1000 Hrs @ 65°C
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.827" (21.00mm)
Operating Temperature -40°C ~ 65°C
Win Source Part Number WS1307080-HV0820-2R7305-R
Ultra Librarian 3D Model Ultra Librarian HV0820-2R7305-R CAD Model

Description

3 F (EDLC) Supercapacitor 2.7 V Radial, Can 80mOhm @ 100Hz 1000 Hrs @ 65°C
