Same model may have multiple batches, images only for reference.

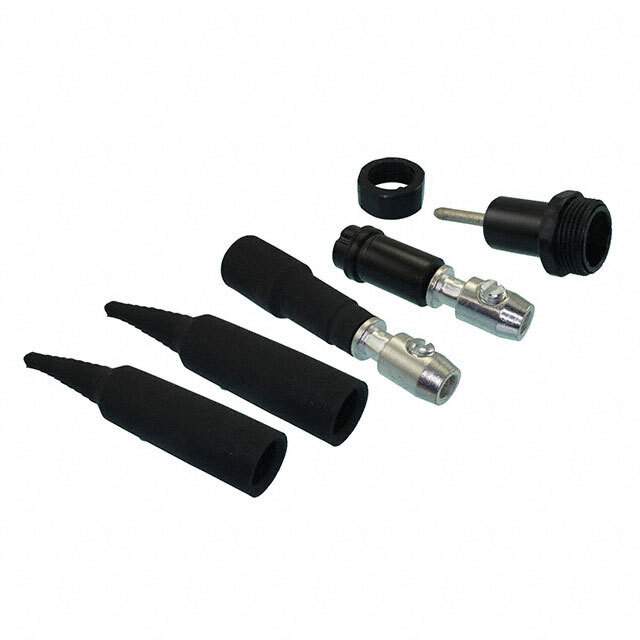

HEB-JW-RLC-J Real Image
Same model may have multiple batches, images only for reference.

HEB-JW-RLC-J

Part No HEB-JW-RLC-J
Manufacturer Eaton Bussmann
Catalog Fuseholders
Description FUSE HOLDR CART 600V 30A IN LINE / Fuse Holder 30 A 600V 1 Circuit Cartridge Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Eaton - Bussmann Electrical Division
Series TRON® HEB
Package Bulk
Mounting Type Free Hanging (In-Line)
Fuse Size 0.394" Dia x 1.496" L (10mm x 38mm)
Current Rating (Amps) 30 A
For Use With/Related Products 5AG, 13/32" x 1-1/2" (Midget)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 600V
Termination Style Wire Leads
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Other Names HEB-JW-RLC-J-ND,2041-1066
Standard Package 10
Win Source Part Number 1049258-HEB-JW-RLC-J
Ultra Librarian 3D Model Ultra Librarian HEB-JW-RLC-J CAD Model

Description

The TRON® HEB series of fuseholders from Eaton - Bussmann Electrical Division is designed for use with 5AG, 13/32" x 1-1/2" (Midget) cartridge fuses.

  • Voltage Rating: 600V
  • Current Rating: 30 A
  • Termination Style: wire leads
  • Fuseholder Type: holder
  • Dimensions: 0.394" Dia x 1.496" L (10mm x 38mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8538.90.8180
  • Win Source Part Number: 1049258-HEB-JW-RLC-J
