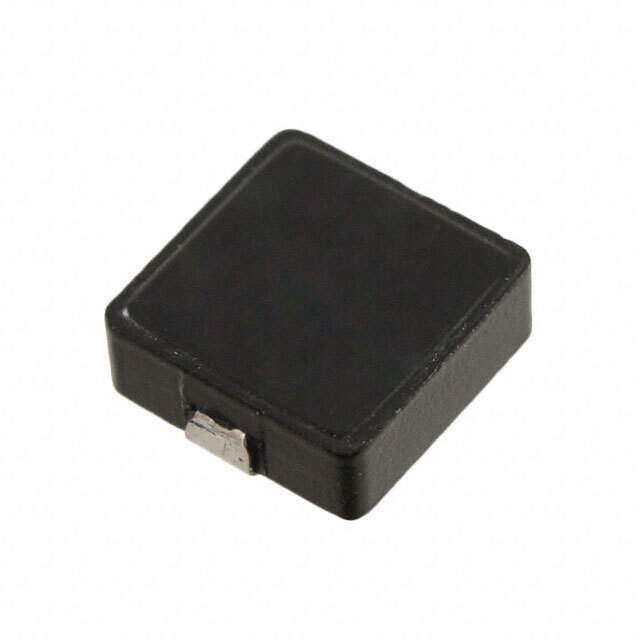

HCP1305-R68-R Real Image
Same model may have multiple batches, images only for reference.

HCP1305-R68-R

Part No HCP1305-R68-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 680NH 34A 1.7 MOHM SMD / Inductor Power Shielded Wirewound 0.68uH 20% 100KHz Powdered Iron 34A 0.0017Ohm DCR T/R
Datasheet
HCP1305-R68-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Series HCP1305
Packaging Reel package
Part Status Obsolete(EOL)
Type Wirewound
Material - Core Powdered Iron
Inductance 680nH
Tolerance ±20%
Current Rating 34A
Current - Saturation 53A
Shielding Unshielded
DC Resistance (DCR) 1.7 mOhm Max
Operating Temperature Range -55°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.543" L x 0.508" W (13.80mm x 12.90mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Win Source Part Number 775657-HCP1305-R68-R
Popularity Medium
Supply and Demand Status Limited
Family Name HCP1305
Introduction Date May 26, 2006
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian HCP1305-R68-R CAD Model

Description

The Eaton 775657-HCP1305-R68-R is an obsolete wirewound unshielded inductor from Eaton.

  • Current Rating: 34A
  • Inductance: 680nH
  • Mounting Type: SMD
  • Tolerance: ±20%
  • DC Resistance (DCR): 1.7 mOhm Max
  • Height: 0.197" (5.00mm)
  • Core Material: Powdered Iron
