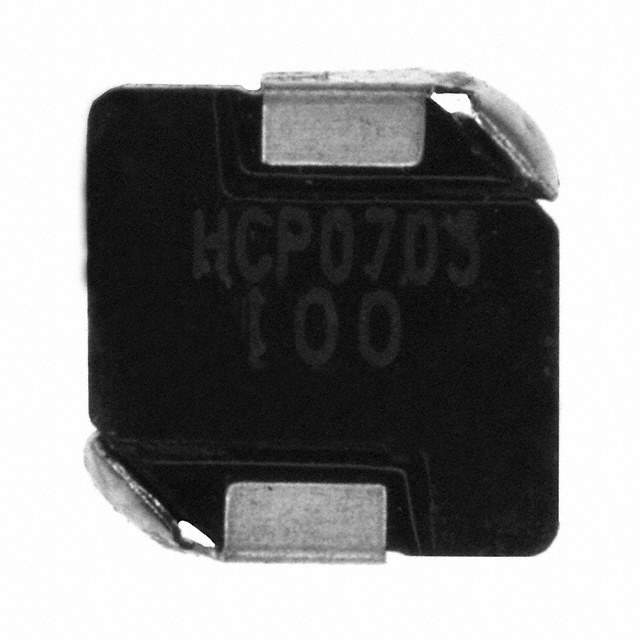

HCP0703-100-R Real Image
Same model may have multiple batches, images only for reference.

HCP0703-100-R

Part No HCP0703-100-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 10UH 3A 105 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 3 A 105mOhm Max Nonstandard
Datasheet
HCP0703-100-R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series HCP0703
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 7A
Shielding Shielded
DC Resistance (DCR) 105mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.276" W (7.30mm x 7.00mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names Q3726272A,513-1358-6,513-1358-2,513-1358-1,HCP0703100R
Standard Package 1,500
Win Source Part Number 1013942-HCP0703-100-R
Ultra Librarian 3D Model Ultra Librarian HCP0703-100-R CAD Model

Description

The HCP0703-100-R is a fixed inductor from Eaton - Electronics Division.

  • Inductance: 10 µH
  • Tolerance: ±20%
  • Type: Shielded, Wirewound
  • DC Resistance: 105mOhm Max
  • Current Rating: 3A
  • Inductance Frequency Test: 100 kHz
  • Height: 0.118" (3.00mm)
  • Package/Case: Nonstandard
  • Temperature Range: -55°C to 125°C
  • Packaging: Tape and Reel
  • Standard Package: 1,500
  • Mfr Part Number: Q3726272A
