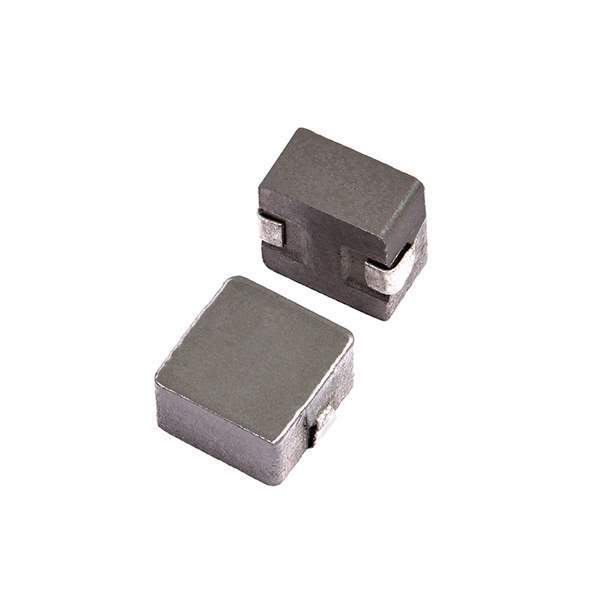

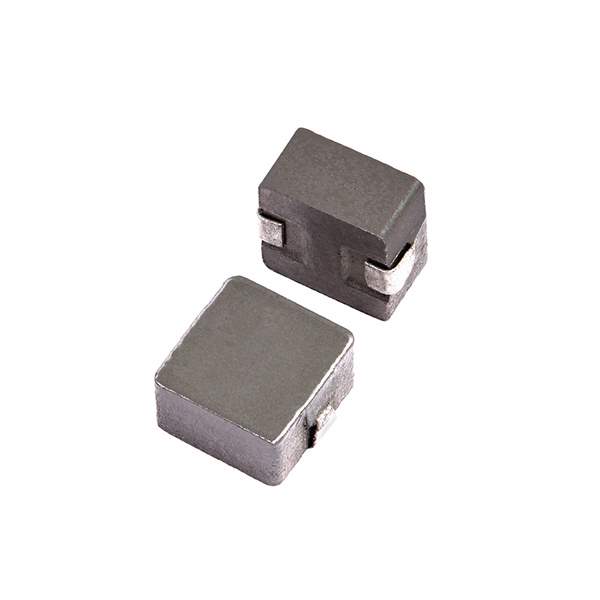

HCM0503-1R0-R Real Image
Same model may have multiple batches, images only for reference.

HCM0503-1R0-R

Part No HCM0503-1R0-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 1UH 10.1A 11.44MOHM SM / 1 µH Shielded Drum Core, Wirewound Inductor 10.1 A 11.44mOhm Max 2020 (5050 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series HCM0503
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 10.1 A
Current - Saturation (Isat) 8.5A
Shielding Shielded
DC Resistance (DCR) 11.44mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2020 (5050 Metric)
Dimension 0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 283-4295-1,283-4295-2,HCM0503-1R0-R-ND,283-4295-6
Standard Package 2,000
Win Source Part Number 975617-HCM0503-1R0-R
Ultra Librarian 3D Model Ultra Librarian HCM0503-1R0-R CAD Model

Description

The HCM0503-1R0-R is a shielded fixed inductor manufactured by Eaton - Electronics Division.

  • Series: HCM0503
  • Inductance: 1 µH
  • Tolerance: ±20%
  • Core Material: iron powder
  • Package/Case: 2020 (5050 Metric)
  • DC Resistance (DCR): 11.44mOhm Max
  • Q @ Freq: not specified
  • Current: 10.1 A
  • Temperature Range: -55°C to 125°C
  • Height: 0.118" (3.00mm)
  • Dimension: 0.203" L x 0.201" W (5.15mm x 5.10mm)
  • Current Saturation (Isat): 8.5A
  • Package: tape & reel
  • Standard Package: 2,000
