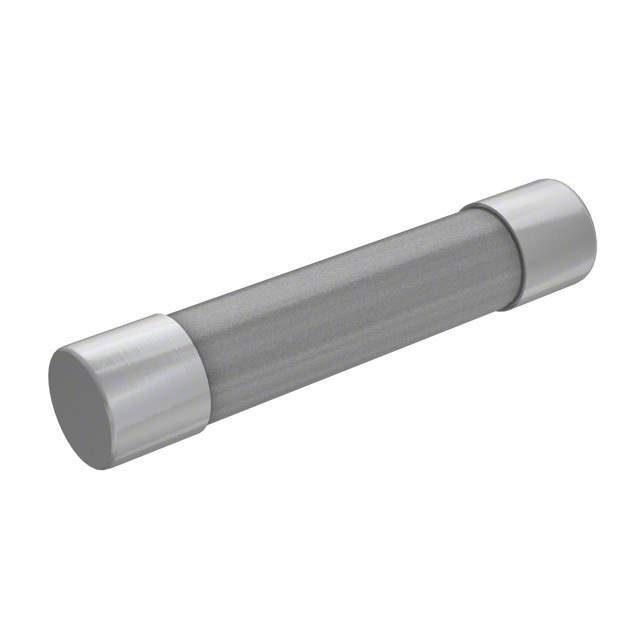

GBB-15-R

Part No GBB-15-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE CERM 15A 250VAC 125VDC 3AB / 15 A 250 V AC 125 V DC Fuse Cartridge, Ceramic Holder 3AB, 3AG, 1/4" x 1-1/4"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series GBB
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 15 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 200A AC, 10kA DC
Melting I2t 0.0735
Approval Agency CSA, UR
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
DC Cold Resistance 0.00472 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 5
Win Source Part Number 1060474-GBB-15-R
Ultra Librarian 3D Model Ultra Librarian GBB-15-R CAD Model

Description

The GBB-15-R is a cartridge ceramic fuse manufactured by Eaton - Electronics Division. It is part of the GBB series and comes in a bulk package.

  • Fuse Type: Fast-blow
