Same model may have multiple batches, images only for reference.

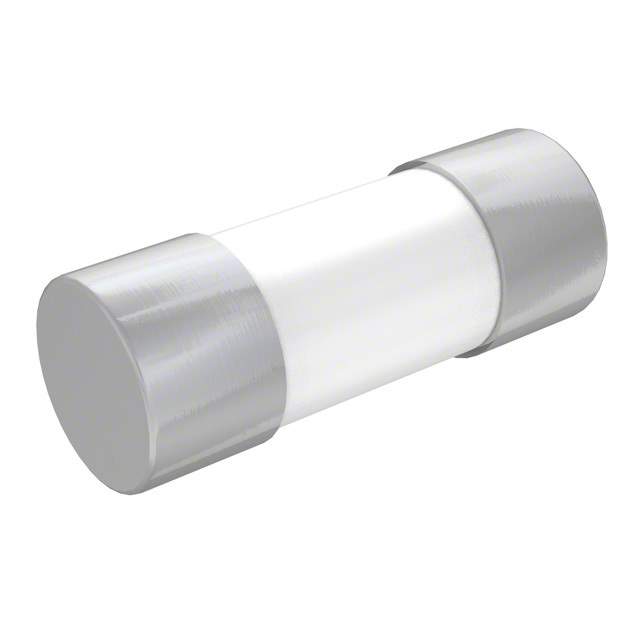

FWP-100A22F Real Image
Same model may have multiple batches, images only for reference.

FWP-100A22F

Part No FWP-100A22F
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 100A 700VAC/500VDC / 100A 700 V AC 500 V DC Fuse Cartridge Holder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Manufacturer Eaton - Bussmann Electrical Division
Packaging Bulk
Mounting Holder
Fuse Type Cartridge
Current Rating (Amps) 100A
Voltage Rating - AC 700 V
Voltage Rating - DC 500 V
Applications Electrical, Industrial
Approval Agency CE, UR
Breaking Capacity @ Rated Voltage 200kA AC, 50kA DC
Case / Package Cartridge, Non-Standard
Size / Dimension 0.874" Dia x 2.283" L (22.20mm x 58.00mm)
Melting I2t 1100
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number 283-4317,FWP-100A22F-ND
Standard Package 10
Win Source Part Number 1334885-FWP-100A22F
Ultra Librarian 3D Model Ultra Librarian FWP-100A22F CAD Model

Description

This is an electrical, specialty fuse from Eaton - Bussmann Electrical Division with a Win Source Part Number of 1334885-FWP-100A22F.

  • Packaging: Bulk
  • Fuse Type: Cartridge
  • Voltage Rating - AC: 700 V
  • Voltage Rating - DC: 500 V
  • Response Time: Not Specified
  • Breaking Capacity @ Rated Voltage: 200kA AC, 50kA DC
  • Melting I2t: 1100
  • Size / Dimension: 0.874" Dia x 2.283" L (22.20mm x 58.00mm)
  • Application: Electrical and Industrial
  • Mounting Type: Holder
  • Operating Temperature: Not Specified
  • Case / Package: Cartridge, Non-Standard
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 100A
  • HTSUS: 8536.10.0040
  • Approval Agencies: CE, UR
  • RoHS Compliant: Yes
