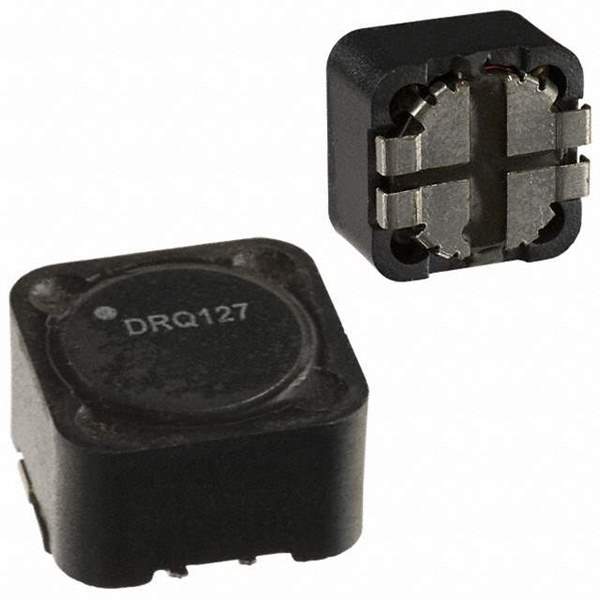

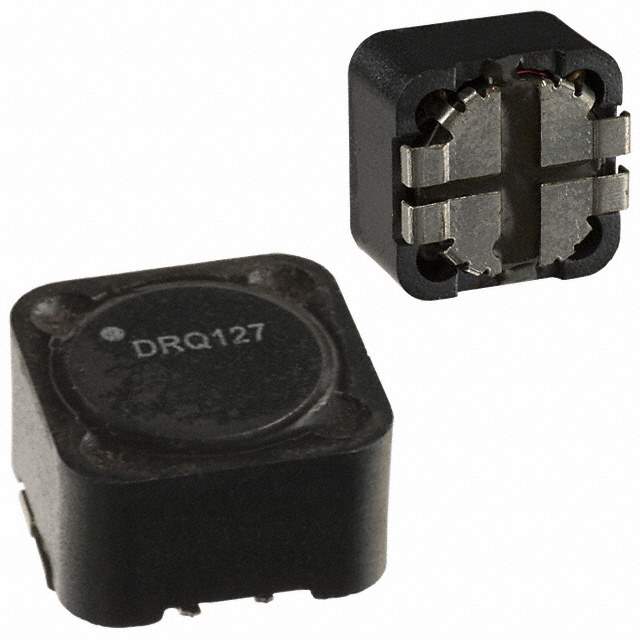

DRQ127-6R8-R Real Image
Same model may have multiple batches, images only for reference.

DRQ127-6R8-R

Part No DRQ127-6R8-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 7.387UH SMD / Shielded 2 Coil Inductor Array 29.55 µH Inductance - Connected in Series 7.387 µH Inductance - Connected in Parallel 11.6mOhm DC Resistance (DCR) - Parallel 7.34 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton - Electronics Division
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 7.387 µH
Inductance - Connected In Series 29.55 µH
Tolerance ±20%
Current Rating - Parallel 7.34 A
Current Rating - Series 3.67 A
Current Saturation - Parallel 13.3 A
Current Saturation - Series 6.67 A
DC Resistance (DCR) - Parallel 11.6mOhm
DC Resistance (DCR) - Series 46.5mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.315" (8.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 513-1309-1,513-1309-2,DRQ1276R8R,DRQ127-6R8-ND,DRQ127-6R8-R-ND,DRQ127-6R8R,DRQ127-6R8,513-1309-6
Standard Package 350
Win Source Part Number 1000181-DRQ127-6R8-R
Ultra Librarian 3D Model Ultra Librarian DRQ127-6R8-R CAD Model

Description

The 1000181-DRQ127-6R8-R is a DRQ series inductor array designed for use in various applications that require efficient and reliable signal transformers. The device has two coils and a shielded package with a height of 0.315".

  • Series: DRQ
  • Number of Coils: 2
  • Package: Shielded
  • Height: 0.315"
  • Inductance (Series): 29.55 µH
  • Inductance (Parallel): 7.387 µH
  • Current Rating (Series): 3.67A
  • Current Rating (Parallel): 7.34A
  • DC Resistance (Series): 46.5mOhm
  • DC Resistance (Parallel): 11.6mOhm
  • Packaging: Tape and Reel
  • Standard Package: 350 units
  • Operating Temperature Range: -40°C to 125°C
