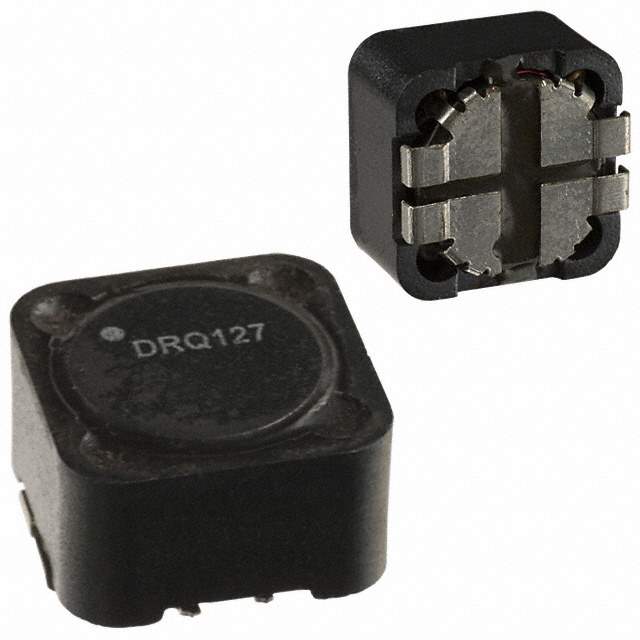

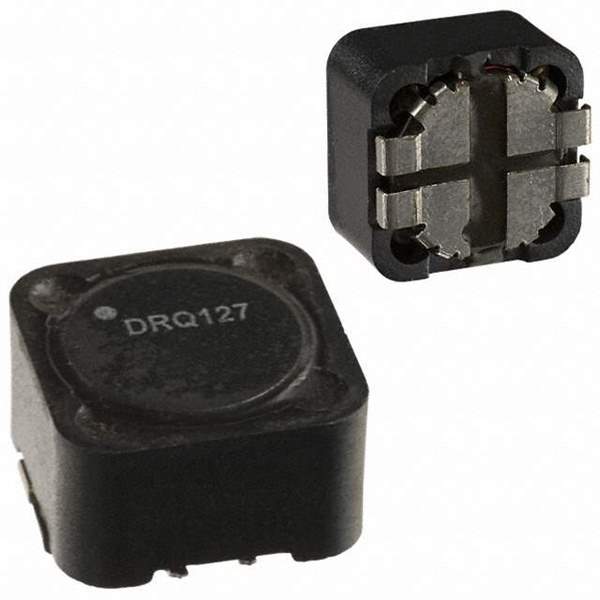

DRQ127-680-R Real Image1 DRQ127-680-R Real Image2
Same model may have multiple batches, images only for reference.
DRQ127-680-R Real Image1 DRQ127-680-R Real Image2
DRQ127-680-R Real Image1 DRQ127-680-R Real Image2
Same model may have multiple batches, images only for reference.

DRQ127-680-R

Part No DRQ127-680-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 66.48UH SMD / Shielded 2 Coil Inductor Array 265.9 µH Inductance - Connected in Series 66.48 µH Inductance - Connected in Parallel 105mOhm DC Resistance (DCR) - Parallel 2.44 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Eaton Bussmann
Series DRQ
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 66.48 µH
Inductance - Connected In Series 265.9 µH
Tolerance ±20%
Current Rating - Parallel 2.44 A
Current Rating - Series 1.22 A
Current Saturation - Parallel 4.44 A
Current Saturation - Series 2.22 A
DC Resistance (DCR) - Parallel 105mOhm
DC Resistance (DCR) - Series 421mOhm
Shielding Shielded
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.315" (8.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 350 pcs
Win Source Part Number 1381919-DRQ127-680-R
Ultra Librarian 3D Model Ultra Librarian DRQ127-680-R CAD Model

Description

The 1381919-DRQ127-680-R is a shielded inductor array from the DRQ series by Eaton Bussmann.

  • Application: Signal Transformer
  • Package: Tape and Reel
  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Height: 0.315" (8.00mm)
  • Tolerance: ±20%
  • Number of Coils: 2
  • Series Inductance: 265.9 μH
  • Parallel Inductance: 66.48 μH
  • Parallel Current Rating: 2.44 A
  • Series Current Rating: 1.22 A
  • Parallel Current Saturation: 4.44 A
  • Series Current Saturation: 2.22 A
  • Parallel DC Resistance (DCR): 105mOhm
  • Series DC Resistance (DCR): 421mOhm
  • Operating Temperature: -40°C to 125°C
