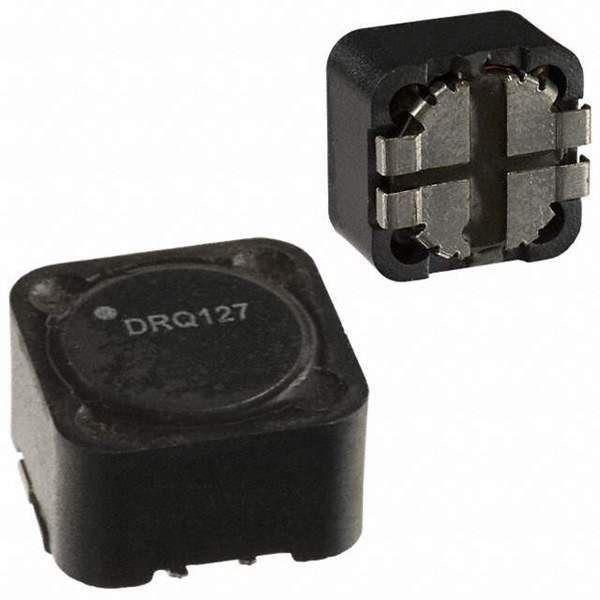

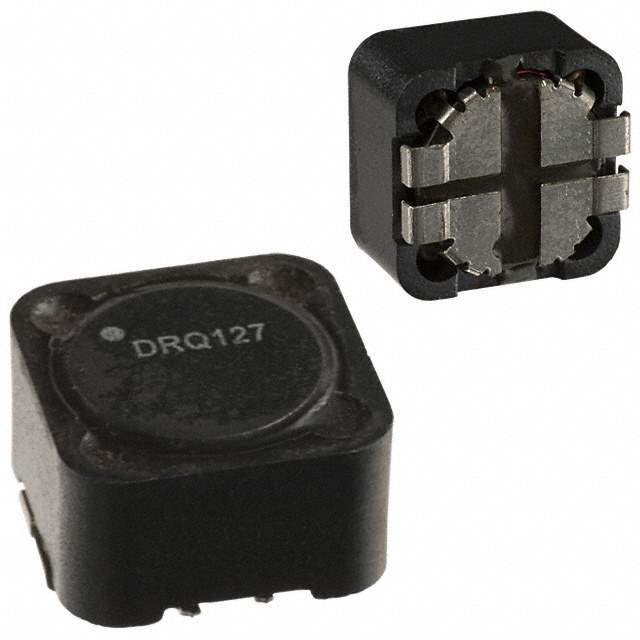

DRQ127-100-R Real Image
Same model may have multiple batches, images only for reference.

DRQ127-100-R

Part No DRQ127-100-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 10.47UH SMD / Shielded 2 Coil Inductor Array 41.88 µH Inductance - Connected in Series 10.47 µH Inductance - Connected in Parallel 17.2mOhm DC Resistance (DCR) - Parallel 6.04 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Number of Coils 2
Inductance - Connected In Parallel 10.47 µH
Inductance - Connected In Series 41.88 µH
Tolerance ±20%
Current Rating - Parallel 6.04 A
Current Rating - Series 3.02 A
Current Saturation - Parallel 11.2 A
Current Saturation - Series 5.6 A
DC Resistance (DCR) - Parallel 17.2mOhm
DC Resistance (DCR) - Series 68.6mOhm
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.315" (8.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 513-1143-2,DRQ127-100-ND,513-1143-1,513-1143-6,DRQ127100R,Q5566975,DRQ127-100
Standard Package 350
Win Source Part Number 1327423-DRQ127-100-R
Ultra Librarian 3D Model Ultra Librarian DRQ127-100-R CAD Model

Description

The Eaton - Electronics Division DRQ127-100-R 1327423-DRQ127-100-R is an array signal transformer component with a shielded packaging.

  • Size/Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Height: 0.315" (8.00mm)
  • Standard Package: 350
  • Mounting: Surface Mount
  • Temperature Range: -40°C ~ 125°C
  • Compliant with: ECCN and HTSUS standards
  • ROHS3 Compliant: Yes
