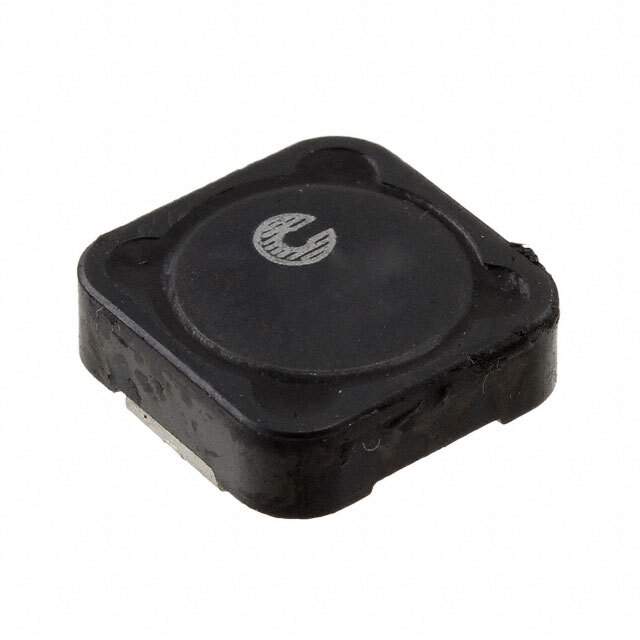

Same model may have multiple batches, images only for reference.

DR124-3R9-R

Name: DR124-3R9-R
Brand: Eaton Bussmann
SKU: 999302
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	DR124-3R9-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 3.9UH 7A 15 MOHM SMD / 3.9 µH Shielded Drum Core, Wirewound Inductor 7 A 15mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	DR124
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	3.9 µH
Tolerance	±20%
Current Rating (Amps)	7 A
Current - Saturation (Isat)	8.4A
Shielding	Shielded
DC Resistance (DCR)	15mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.177" (4.50mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	750
Win Source Part Number	999302-DR124-3R9-R
Ultra Librarian 3D Model	Ultra Librarian DR124-3R9-R CAD Model

Alternative Products

Description

The DR124 series of shielded inductors from Eaton is a high-quality range of drum core, wirewound inductors.

Inductor Type: Drum Core, Wirewound
Packaging: Tape and Reel
Inductance: 3.9 µH
Current Rating: 7 A
DC Resistance: 15mOhm
Tolerance: ±20%
Operating Temperature: -40°C to 125°C
AEC-Q200: Compliant
Component: Nonstandard
