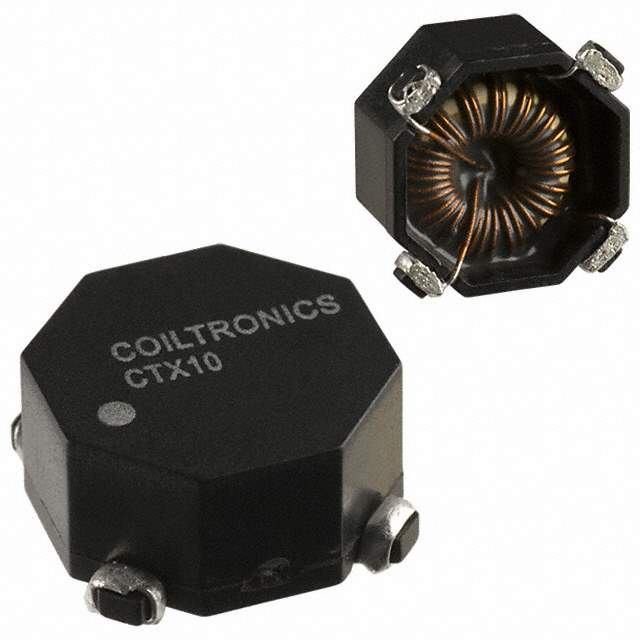

CTX10-4A-R Real Image
Same model may have multiple batches, images only for reference.

CTX10-4A-R

Part No CTX10-4A-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 10.53UH SMD
Datasheet
CTX10-4A-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 42.11μH
Inductance - Connected In Parallel 10.53μH
Tolerance ±25%
Current Rating - Parallel 4.67A
Current Rating - Series 2.33A
Current Saturation - Parallel 4.09A
Current Saturation - Series 2.05A
DC Resistance (DCR) - Parallel 20 mOhm Max
DC Resistance (DCR) - Series 81 mOhm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.250" (6.35mm)
Win Source Part Number 1030800-CTX10-4A-R
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian CTX10-4A-R CAD Model

Description

The CTX10-4A-R from Eaton is an inductor component that is suitable for use in various power management and industrial electronic applications.

  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Tolerance: ±25%
  • DC Resistance (Parallel): 20 mOhm max
  • DC Resistance (Series): 81 mOhm max
