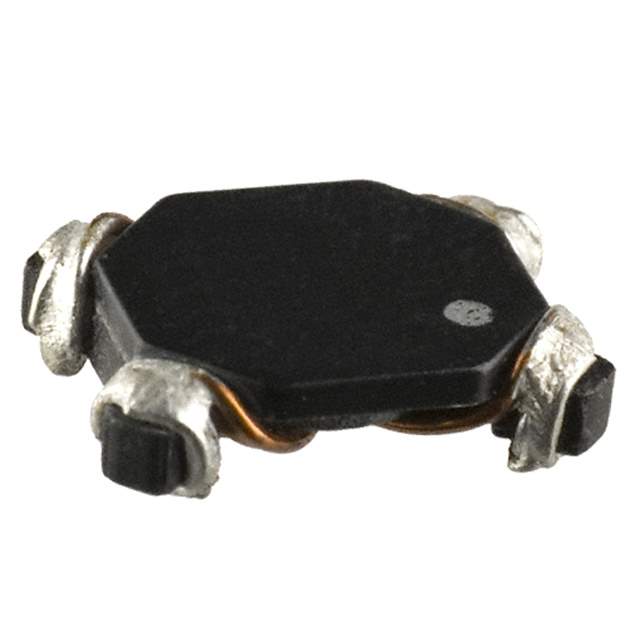

CMS1-5-R

Part No CMS1-5-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 25UH 3.6A 2LN SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 25μH @ 100kHz
Current Rating (Max) 3.6A
DC Resistance (DCR) (Max) 10 mOhm (Typ)
Temperature Range - Operating -40°C to 160°C
Mounting SMD (SMT)
Height (Max) 0.102" (2.60mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 125919-CMS1-5-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CMS1-5-R CAD Model

Description

CMS1-5-R Versatile Component

The CMS1-5-R is a versatile electronic component designed to address a variety of needs in both consumer and industrial applications. Its robust design ensures durability and consistent performance.

  • Diverse compatibility with various electronic frameworks.
  • Reliable construction for long-term use and reduced maintenance.
  • User-friendly integration, simplifying installation processes.

Applications:

  • Smart home devices – enhancing connectivity and functionality.
  • Manufacturing systems – ensuring efficiency and reduction of downtime.
  • Security systems – fostering reliable surveillance and monitoring.

With the CMS1-5-R, users are equipped with a reliable solution tailored for a broad spectrum of applications.
