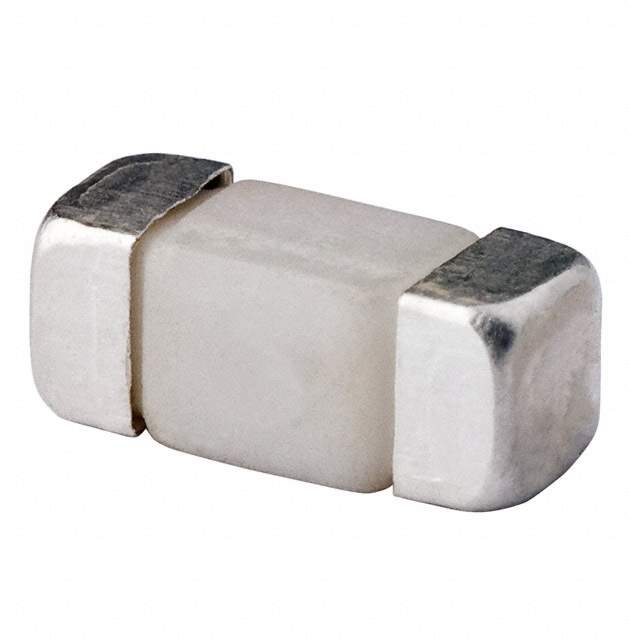

CB61F7A-TR1 Real Image
Same model may have multiple batches, images only for reference.

CB61F7A-TR1

Part No CB61F7A-TR1
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 7A 125VAC/VDC 2SMD / 7 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series CB61F
Package Tape & Reel (TR)
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 7 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A AC, 300A DC
Melting I2t 15.6
Approval Agency cULus, PSE
Dimension 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm)
DC Cold Resistance 0.009 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 1,000
Win Source Part Number 1051310-CB61F7A-TR1
Ultra Librarian 3D Model Ultra Librarian CB61F7A-TR1 CAD Model

Description

The Eaton CB61F is a fast blow fuse with a current rating of 7 A and voltage ratings of 125 V AC and DC.

  • Product: CB61F
  • Manufacturer: Eaton
  • Type: Fast Blow Fuse
  • Current Rating: 7 A
  • Voltage Rating: 125 V AC/DC
  • Response Time: Fast Blow
  • Breaking Capacity (AC): 100A AC @ Rated Voltage
  • Breaking Capacity (DC): 300A DC @ Rated Voltage
  • Mounting: SMD (SMT)
  • Package: 2-SMD, Square End Block
  • DC Cold Resistance: 0.009 Ohms
  • Melting I2t: 15.6
  • Standard Package: 1,000 Fuses
  • Approvals: cULus, PSE
