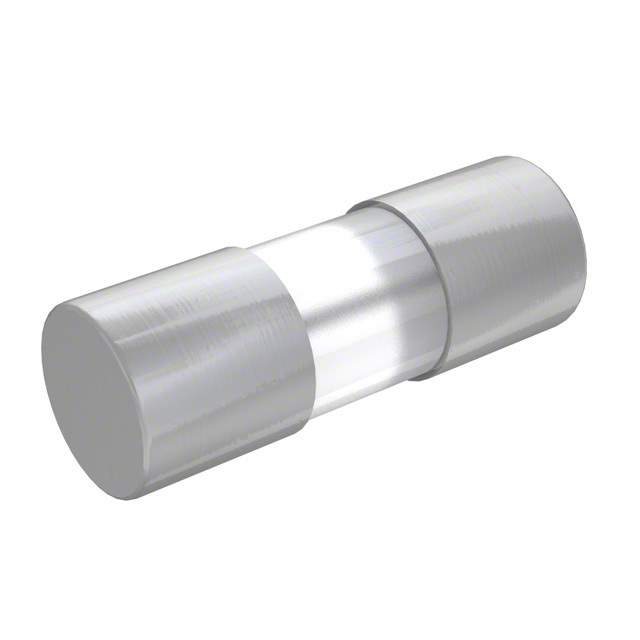

BK/C520-1.5-R Real Image
Same model may have multiple batches, images only for reference.

BK/C520-1.5-R

Part No BK/C520-1.5-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE GLASS 1.5A 250VAC 2AG / 1.5 A 250 V AC DC Fuse Cartridge, Glass Holder 2AG, 5mm x 15mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series C520
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 1.5 A
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 2AG, 5mm x 15mm
Breaking Capacity @ Rated Voltage 100A
Melting I2t 0.8
Approval Agency CSA, UL
Dimension 0.205" Dia x 0.570" L (5.20mm x 14.48mm)
DC Cold Resistance 0.9 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Names BK-C520-1-5-R
Standard Package 100
Win Source Part Number 996035-BK/C520-1.5-R
Ultra Librarian 3D Model Ultra Librarian BK/C520-1.5-R CAD Model

Description

The Eaton - Electronics Division 996035-BK/C520-1.5-R is a fast-blow glass cartridge fuse that is ideal for use in circuit protection applications.

  • Voltage Rating: 250 V
  • Purpose: provide reliable protection against overcurrents and short circuits
  • Breaking Capacity: 100A
  • Melting I2t: 0.8
  • DC Cold Resistance: 0.9 Ohms
  • Package: 2AG, 5mm x 15mm
  • Mounting: easy to mount and install
  • Packaging: bulk packaging
  • Standard Package: 100
  • Usage: designed to be used with a holder
