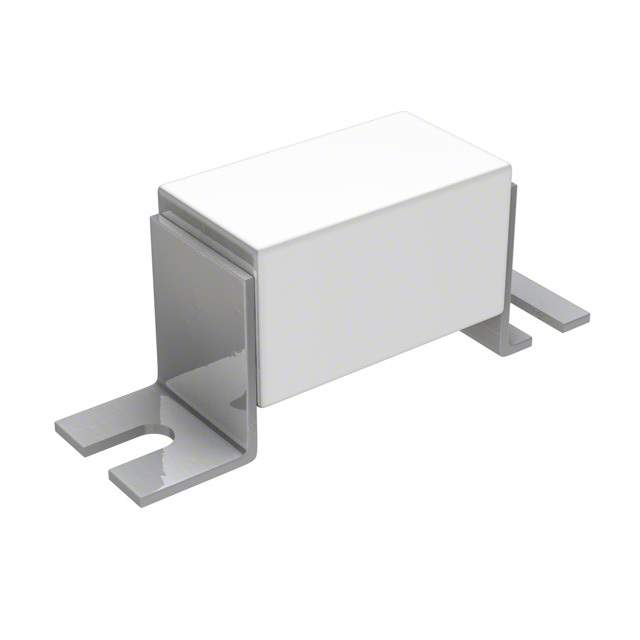

170M2617 Real Image
Same model may have multiple batches, images only for reference.

170M2617

Part No 170M2617
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description Fuse Square Body 200A 690V Stud Mount 54 X 21mm CSA/UL / FUSE SQ 200A 700VAC RECTANGULAR
Datasheet
170M2617 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Packaging Bulk
Fuse Type Square
Current Rating 200A
Voltage Rating - AC 700V
Applications Electrical, Industrial
Features Indicating
Approvals CE, CSA, UR
Breaking Capacity @ Rated Voltage 200kA
Mounting Bolt Mount
Package Rectangular, Blade
Dimension 2.126" L x 1.181" W x 2.008" H (54.00mm x 30.00mm x 51.00mm)
Melting I2t 3400
Win Source Part Number 784897-170M2617
Popularity Medium
Supply and Demand Status Limited
Family Name 170M
Introduction Date September 18, 2001
ECCN EAR99
Country of Origin China
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian 170M2617 CAD Model

Description

The Eaton 170M2617 Square Fuse is a high-quality product that provides excellent circuit protection.

  • Current Rating: 200A
  • Voltage Rating: 700V AC
  • Breaking Capacity: 200kA
  • Melting I2t: 3400
  • Approvals: CE, CSA, and UR
  • Applications: Industrial and Electrical
  • Popularity: Medium
  • Supply and Demand: Limited
  • Status: Active
