Same model may have multiple batches, images only for reference.

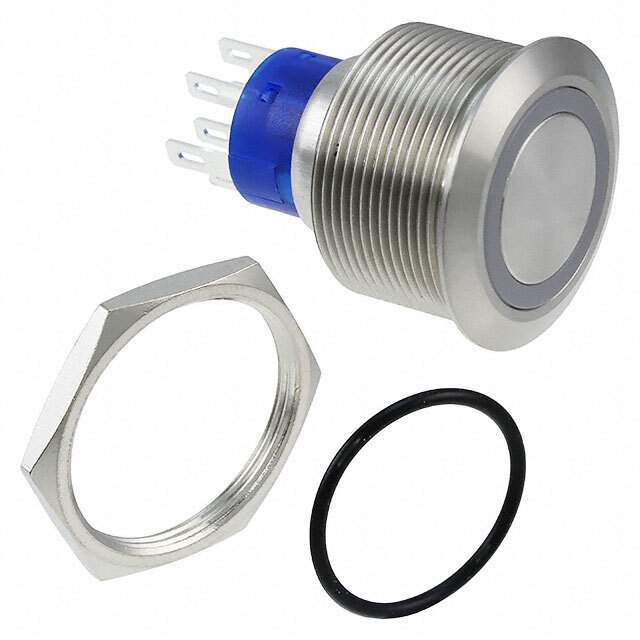

ULV8F2HSS341 Real Image
Same model may have multiple batches, images only for reference.

ULV8F2HSS341

Part No ULV8F2HSS341
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON DPDT 3A 250V / Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
Datasheet
ULV8F2HSS341 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr E-Switch
Series ULV8
Package Bulk
Mounting Type Panel Mount, Front
Type Anti-Vandal, Illuminated
Circuit DPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC)
Voltage Rating - AC 250 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Silver
Illumination Type, Color LED, Blue
Illumination Voltage (Nominal) 3 VDC
Termination Style Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 25.20mm Dia
Temperature Range - Operating -20°C ~ 55°C
Mechanical Life 1,000,000 Cycles
Electrical Life 50,000 Cycles
Base Product Number ULV8
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names EG5366
Standard Package 20
Win Source Part Number 1136887-ULV8F2HSS341
Ultra Librarian 3D Model Ultra Librarian ULV8F2HSS341 CAD Model

Description

The ULV8F2HSS341 is a pushbutton switch manufactured by E-Switch.

  • Series: ULV8
  • Circuit: DPDT
  • Voltage Rating (AC): 250V
  • Current Rating (AC): 3A
  • Ingress Protection: IP67
  • Illumination: Blue LED
  • Mechanical Life: 1,000,000 cycles
  • Panel Cutout Dimension: 25.20mm Dia
  • Actuator Type: Round, Button, Flush
  • ECCN: Compliant
  • REACH: Compliant
  • MSL Level: Unlimited
