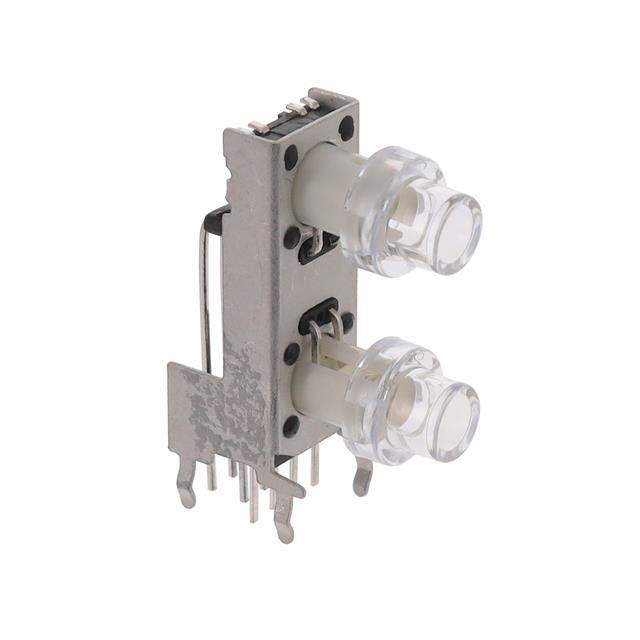

TL3253BBABBAF160Q

Name: TL3253BBABBAF160Q
Brand: E-Switch
SKU: 1207282
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TL3253BBABBAF160Q
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	TL3253BBABBAF160Q / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	E-Switch
Series	TL3253
Package	Bulk
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Dual
Mounting Type	Through Hole, Right Angle
Actuator Length, Right Angle	8.55mm
Actuator Orientation	Side Actuated
Termination Style	PC Pin
Outline	8.40mm x 10.50mm
Illumination	Illuminated
Illumination Type, Color	LED, Blue/Blue
Illumination Voltage (Nominal)	3.3 VDC
Operating Force	160gf
Temperature Range - Operating	-20°C ~ 70°C
Switch Travel	0.25mm
Mechanical Life	500,000 Cycles
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	141-TL3253BBABBAF160Q,B060006
Standard Package	1
Win Source Part Number	1207282-TL3253BBABBAF160Q
Ultra Librarian 3D Model	Ultra Librarian TL3253BBABBAF160Q CAD Model

Description

The TL3253BBABBAF160Q switch from E-Switch is a through hole, right angle switch with SPST-NO circuit and Off-Mom switch function.

Mounting Type: Through Hole, Right Angle
Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Type: Dual
Switch Travel: 0.25mm
Outline: 8.40mm x 10.50mm
Actuation: Side
Illumination: LED, blue/blue
Illumination Voltage: 3.3 VDC
Contact Rating: 0.05A @ 12VDC
Operating Force: 160gf
Mechanical Life: 500,000 cycles
Operating Temperature Range: -20°C to 70°C
Illuminated: Yes
ECCN: EAR99
