Same model may have multiple batches, images only for reference.

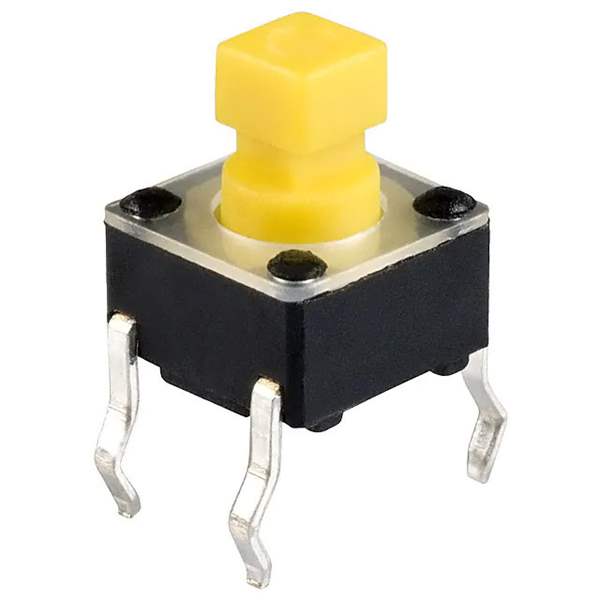

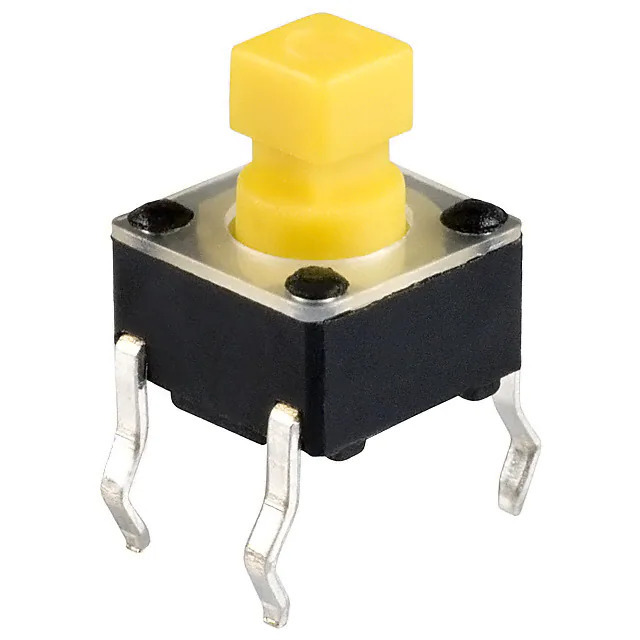

TL1105SPF250Q

Name: TL1105SPF250Q
Brand: E-Switch
SKU: 1376556
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TL1105SPF250Q
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet	TL1105SPF250Q Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	E-Switch
Series	TL1105
Package	Bulk
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Plunger for Cap
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	7.50mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	6.00mm x 6.00mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	250gf
Ingress Protection	-
Features	-
Temperature Range - Operating	-20°C ~ 70°C
Actuator Material	Polyamide (PA), Nylon
Switch Travel	0.25mm
Mechanical Life	100,000 Cycles
Base Product Number	TL1105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376556-TL1105SPF250Q
Ultra Librarian 3D Model	Ultra Librarian TL1105SPF250Q CAD Model

Alternative Products

Description

The TL1105SPF250Q is a tactile switch from E-Switch.

Mounting Type: Through Hole
Actuator Type: Plunger for Cap
Features: None
Mechanical Life: 100,000 Cycles
Contact Rating @ Voltage: 0.05A @ 12VDC
Actuator Height off PCB: 7.50mm
Switch Travel: 0.25mm
Illumination: Non-Illuminated
Operating Force: 250gf
Actuator Material: Polyamide (PA), Nylon
Operating Temperature: -20°C ~ 70°C
Packaging: Bulk
Product Category: Switches - Tactile
