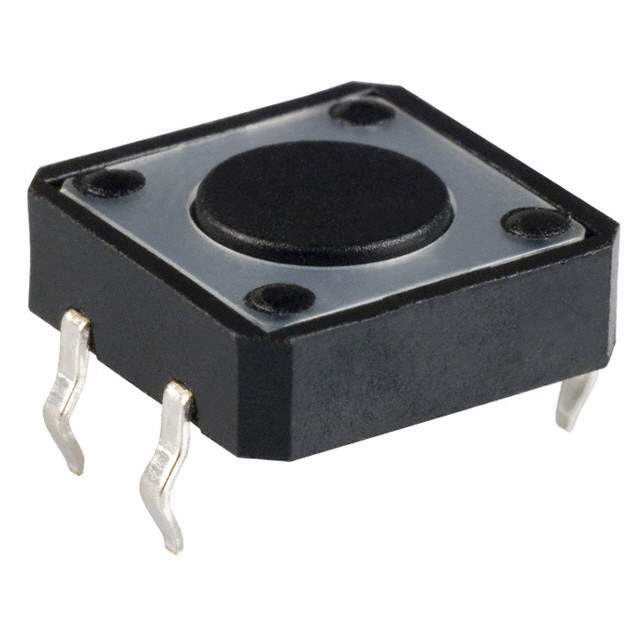

TL1100DF160Q Real Image
Same model may have multiple batches, images only for reference.

TL1100DF160Q

Part No TL1100DF160Q
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V  /  Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
TL1100DF160Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr E-Switch
Series TL1100
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 12.00mm x 12.00mm
Illumination Non-Illuminated
Operating Force 160gf
Features Tactile Feedback
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyester
Switch Travel 0.30mm
Mechanical Life 100,000 Cycles
Base Product Number TL1100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names TL 1100 D F160 Q,P001100,TL1103,EG1023
Standard Package 500
Win Source Part Number 1179672-TL1100DF160Q
Ultra Librarian 3D Model Ultra Librarian TL1100DF160Q CAD Model

Description

The TL1100DF160Q is a SPST-NO tactile switch from E-Switch.

  • Switch Type: Tactile
  • Configuration: SPST-NO
  • Actuator Type: Standard
  • Feedback: Tactile
  • Travel Distance: 0.30mm
  • Operating Force: 160gf
  • Mechanical Life: 100,000 Cycles
  • Actuation Direction: Top Actuated
  • Termination Style: PC Pin
  • Mounting Type: Through Hole
  • Outline: 12.00mm x 12.00mm
  • Illumination: Non-Illuminated
  • Contact Rating: 0.05A @ 12VDC
  • Operating Temperature Range: -20°C to 70°C
