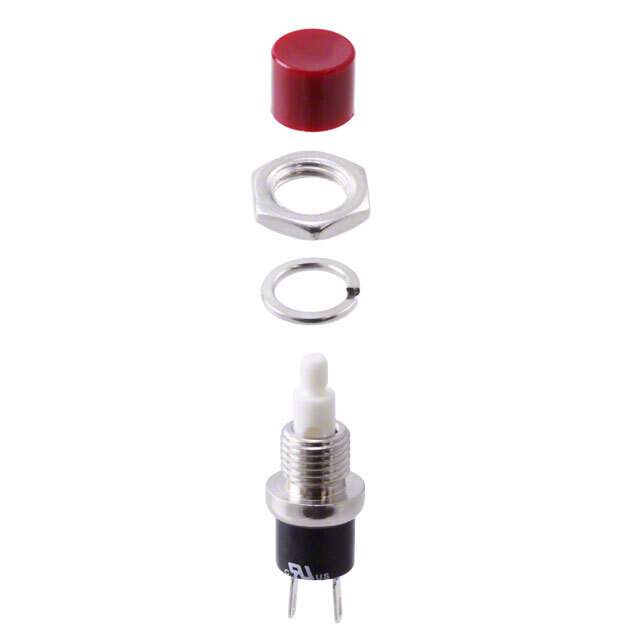

PS1024ARED Real Image
Same model may have multiple batches, images only for reference.

PS1024ARED

Part No PS1024ARED
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 3A 125V / Pushbutton Switch SPST-NO Standard Panel Mount, Rear
Datasheet
PS1024ARED Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr E-Switch
Series PS1024
Package Bulk
Mounting Type Panel Mount, Rear
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 3A (AC)
Voltage Rating - AC 125 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Red
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 7.20mm Dia
Temperature Range - Operating -20°C ~ 65°C
Mechanical Life 6,000 Cycles
Electrical Life 6,000 Cycles
Base Product Number PS1024
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names F010241,PS1024A-RED,PS1024AT-RED,EG2015
Standard Package 200
Win Source Part Number 1229070-PS1024ARED
Ultra Librarian 3D Model Ultra Librarian PS1024ARED CAD Model

Description

The PS1024ARED is a pushbutton switch manufactured by E-Switch.

  • Type: Standard
  • Panel Cutout Dimension: 7.20mm diameter
  • Switch Type: Single Pole Single Throw Normally Open
  • Switch Function: Off-Mom
  • Mechanical Life: 6,000 cycles
  • Electrical Life: 6,000 cycles
  • Actuator Type: Round, Button
  • Actuator/Cap Color: Red
  • Current Rating: 3A (AC)
  • Operating Temperature Range: -20°C to 65°C
  • Mounting Type: Panel Mount, Rear
  • Packaging: Bulk
  • Standard Package: 200
