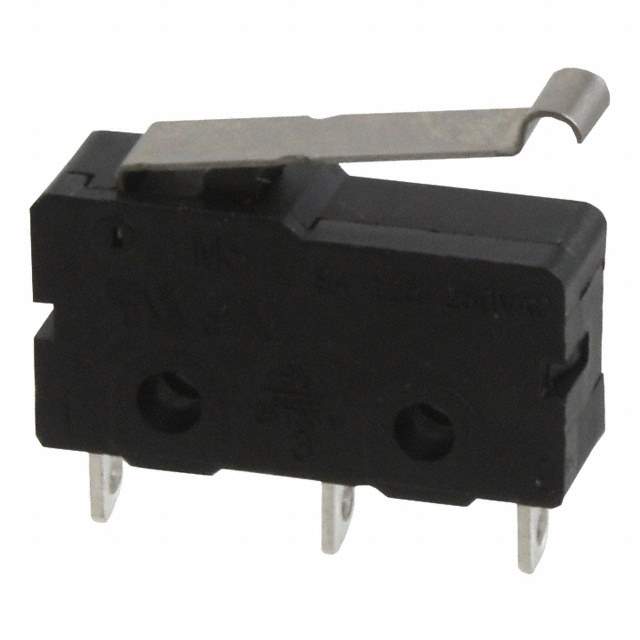

MS0850504F020S1A Real Image
Same model may have multiple batches, images only for reference.

MS0850504F020S1A

Part No MS0850504F020S1A
Manufacturer E-Switch
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Datasheet
MS0850504F020S1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr E-Switch
Series MS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Operating Force 20gf
Release Force 8.000gf
Pretravel 0.125" (3.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.429" (10.9mm)
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number MS0850504
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Other Names EG4547
Standard Package 1
Win Source Part Number 986469-MS0850504F020S1A
Ultra Librarian 3D Model Ultra Librarian MS0850504F020S1A CAD Model

Description

The MS limit switch from E-Switch is a SPDT switch with a lever, simulated roller actuator.

  • Switch Type: SPDT
  • Actuator: Lever, Simulated Roller
  • Voltage Rating: 125V AC
  • Contact Rating: 5A (AC)
  • Operating Temperature: -25°C ~ 85°C
  • Mechanical Life: 1,000,000 cycles
  • Mounting: Chassis Mounted
  • Termination Style: Solder Lug
  • ECCN: EAR99
