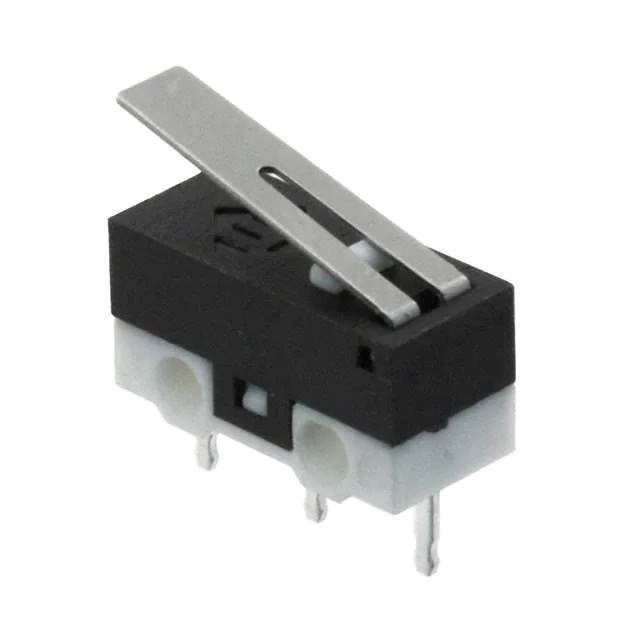

SS0750301F040P1A Real Image
Same model may have multiple batches, images only for reference.

SS0750301F040P1A

Part No SS0750301F040P1A
Manufacturer E-Switch
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Through Hole
Datasheet
SS0750301F040P1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr E-Switch
Series SS
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Operating Force 40gf
Release Force 15gf
Operating Position 0.345" (8.8mm)
Pretravel 0.063" (1.6mm)
Temperature Range - Operating -25°C ~ 75°C
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS0750301
Standard Package 120 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 851891-SS0750301F040P1A
Ultra Librarian 3D Model Ultra Librarian SS0750301F040P1A CAD Model

Description

The SS0750301F040P1A is a limit switch from E-Switch.

  • Series: SS
  • Termination Style: PC Pin
  • Package: Bulk (120 pcs)
  • Voltage Rating: 125 V AC
  • Current Rating: 3A (AC)
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever
  • Operating Force: 40gf
  • Operating Temperature: -25°C to 75°C
  • Lifecycle Status: Active
